Technical Specification
Type:
The output of this machine is fully suspended, with two independent and isolated CF type anti-defibrillation application parts (Monopolar and Bipolar), Non-AP、Non-APG type common equipment, and 220V ± 10% or 110V ± 10% network power supply.
Function:
The 416KHz (± 10%) high frequency current generated by this machine can perform surgical operations such as cutting and coagulation of biological tissues, and has monopolar cut: pure cut, blend cut; Monopolar coagulation: spray coagulation, soft coagulation and standard bipolar working modes.
- Full-function automatic power compensation.
- The high-frequency generator has a universal endoscope interface, which is used with gastroscope, enteroscope, bronchoscope, laparoscope and other endoscopes.
- Support bipolar closure and separation to meet the requirements of surgical bipolar treatment without sticking the negative plate.
- Patient circuit bipolar electrode plate contact quality detection system.
- * Three-foot independent control, monopolar and bipolar direct stepping output, without switch through foot or hand.
- Monopolar output can be controlled either by hand or foot, and monopolar/bipolar automatic output.
- * This machine has a power-off protection circuit, which can memorize the output set value of each function in real time.
- Odor removal rate: 99% @ 1 year (within one year operation, odor removal rate reaches 99%)
- Super quiet design, the maximum ventilation noise < 50dB.
- Remote fault diagnosis.
- * Human voice alarm function
- Passed EMC test.

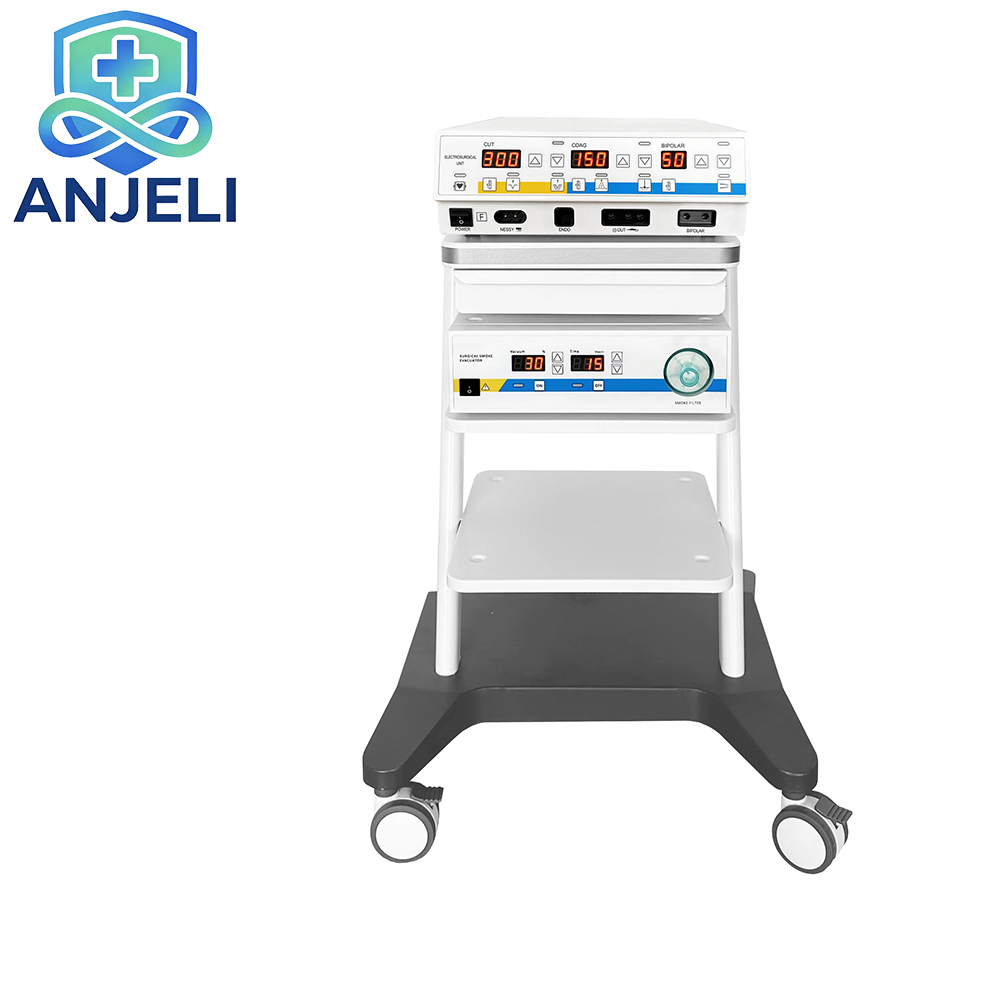

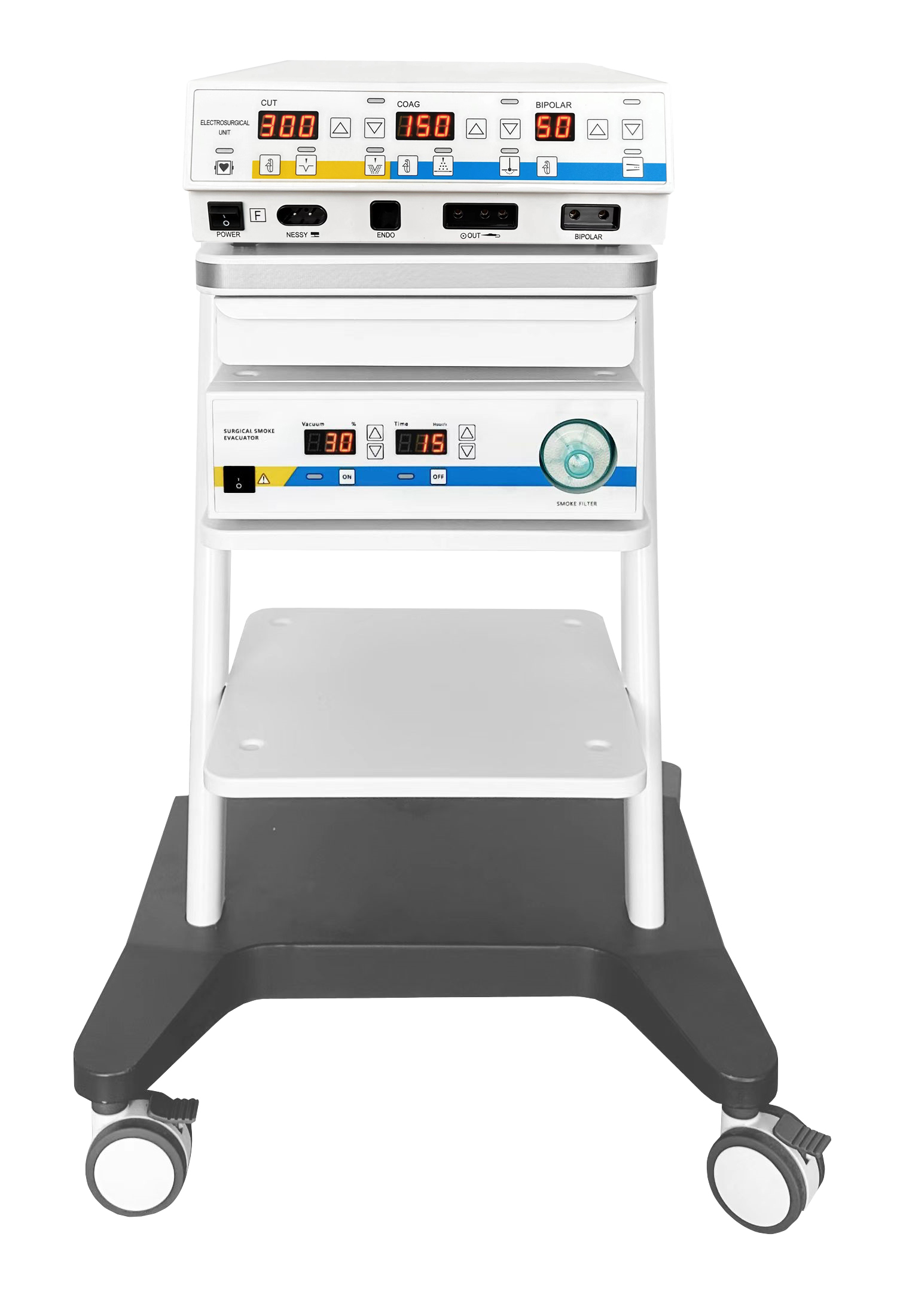

CM-350D LEEP (loop electrosurgical excision procedure, LEEP) has diverse loop electrodes, being available for excision of transformation zone in cunnus, Vagina and cervix and shows minimal tissue damage in the excision.
It performs cutting and stopping bleeding in the course of cone excision for treating cervical intraepithelial neoplasm (CIN) at the same time.
The maximal effect of hemostasis at the base of focus of infection can be achieved. And CM-350D LEEP is simple to use, safe and Dependable.
Furthermore, the special smoke evacuator can efficiently clear up the harmful smog for treating CIN and HPV, so purifies air and safeguards the medical staffs safety.
Rated output power:
- Pure cut：1W~350W (load 500 Ω, Max. 400W);
A high-frequency alternating current yields smooth, rapid cuts that evoke little to know hemostasis.
- Blend cut：1W~250W (load 500 Ω);
Preset blended cut modes give the surgeon varying degrees of hemostasis in cut mode.
- Spray coagulation：1W~80W (load 500 Ω);
Spray output is made for direct coagulation at the tissue with spark. above spark does not give any cutting effect as its CREST FACTOR is high.
- Desicate coagulation：1W~120W (load 500 Ω);
Coagulation in which the active electrode is in direct contact with the tissue is referred to as desiccation and is the type of coagulation used in most surgeries it ensures pinpoint desiccation with less destruction of peripheral tissue.
Power consumption of the whole machine: ≤ 1100VA. (cut function 350W);
- Standard bipolar coagulation：1W~70W (load 100 Ω);
BI-COAG - For highly precise control over coagulation process and privations of carbonization.
Power consumption of the whole machine: ≤ 1100VA. (cut function 350W);
Smoke evacuator
- Power supply: 110~220VAC, 50Hz, 2A
- Maximum vacuum: ≥ 10kPa
- Input power: 350W
- Maximum air volume: 100 l/min
- Stop delay time: 0-60s adjustable
- Noise: ≤ 50dB (A)
- Particle removal: 99.99% @ 0.2um
Normal operation
- Ambient temperature range: 5 ℃~40 ℃;
- Relative humidity range: ≤ 80%;
- Atmospheric pressure range: 86.0~106.0kPa;
- Power supply: 220V±10%, 50±1Hz; or 110V±10%, 60±1Hz
- Working frequency: 416kHz;
Transportation and storage
- Ambient temperature range: - 40 ℃~55 ℃;
- Relative humidity range: ≤ 95%;
- Atmospheric pressure range: 50.0~106.0kPa.
