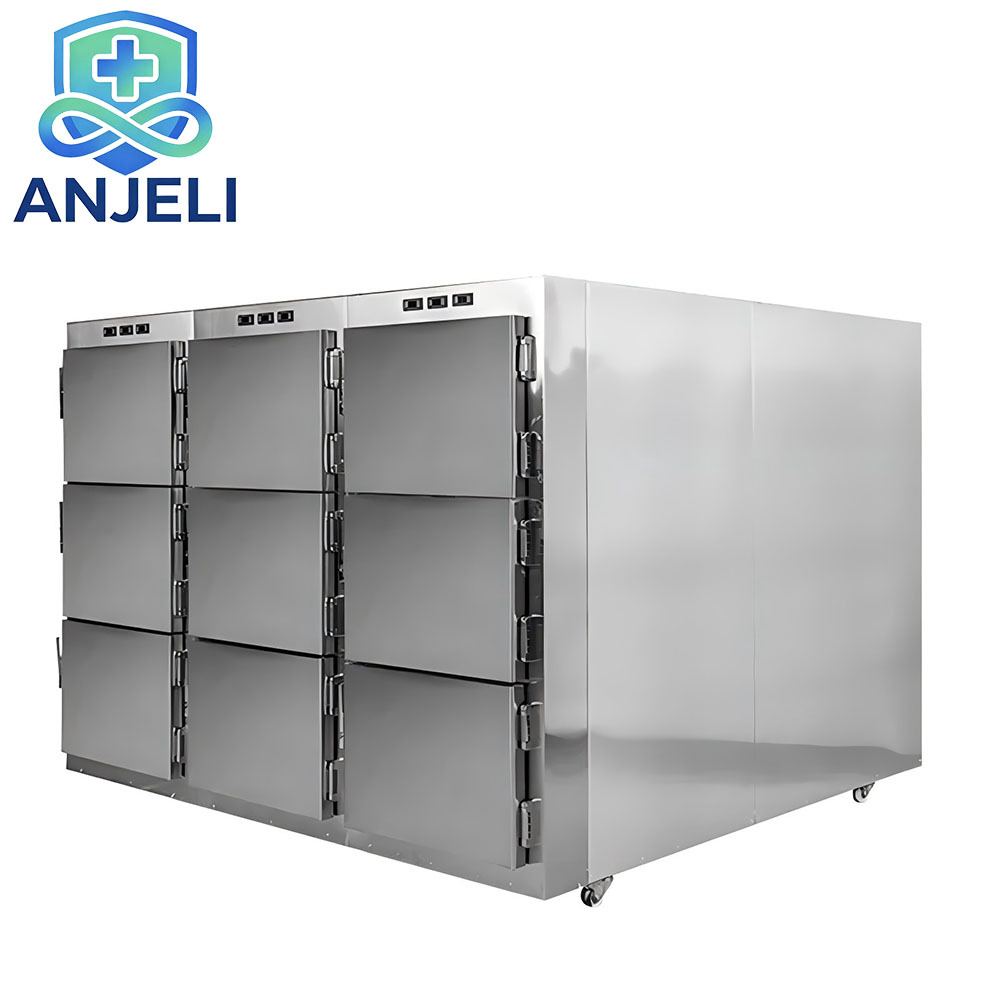

AJLRD-9 9-Body Mortuary Refrigerator

AJLRD-9 9-Body Mortuary Refrigerator

Product Overview

The AJLRD-9 is a high-capacity 9-body mortuary refrigerator engineered for large hospital morgues, forensic centers, and high-volume funeral homes. Featuring nine independent chambers with dedicated temperature control, a German SECOP compressor, and 100 mm high-density insulation, the AJLRD-9 delivers reliable, uniform cooling across all compartments. Built from 304-grade stainless steel with fully welded and polished seams, it is designed for demanding professional environments where capacity and reliability are critical.

 Key Specifications at a Glance

Capacity: 9-Body  |  Material: 304 Stainless Steel  |  Compressor: SECOP (Germany)  |  Insulation: 100 mm

Custom Design Solutions Available

We provide tailored design proposals and accept full customization — dimensions, materials, temperature ranges, configurations, and facility-specific integrations.

Technical Specifications

Model: AJLRD-9

Chambers: 9 independent compartments

Material: Stainless Steel 304 (optional: 316)

Overall Size: 2280 x 2360 x 1785 mm

Package Size: 2320 x 2440 x 1900 mm

Volume: 10.8 m³

Package Weight :1000 kg

Body Tray Size: 1950 x 630 x 440 mm

Door Size: 1940 x 580 mm

Thickness Outer: 1.0 mm | Body tray: 1.0 mm | Inner: 0.6 mm

Insulation :100 mm high-density

Compressor: SECOP (Germany) | Chinese compressor optional

Refrigerant SECOP: R404A / R452A | Chinese: R134A

Temperature Range Standard: 0 to -10°C (±1°C) | Adjustable: 5 to -15°C

Temperature Control: Independent per chamber

Ambient Temperature: 10-50°C

Power: 2520W/1.2A

Voltage: 220V/50Hz (110V/60Hz optional)

Alarm System: High/low temp | Door open | Power failure | Remote alarm (optional)

Mobility: 4 heavy-duty wheels with brake

Welding: Fully welded and polished

Optional Functions: LED light | Drain system | UV sterilization | Ozone purification | Remote alarm | Temperature recorder

Key Features

German SECOP Compressor — Premium-grade SECOP compressor (Germany) delivers consistent cooling with exceptional reliability. Chinese compressor option available for cost-sensitive projects.

Nine Independent Chambers — Each chamber has dedicated temperature control, enabling different storage conditions across all nine compartments simultaneously.

100 mm High-Density Insulation — Superior thermal retention significantly reduces compressor runtime and energy consumption while maintaining stable internal temperatures.

Comprehensive Alarm System — Built-in high/low temperature, door open, and power failure alarms. Remote alarm notification optional.

Full Stainless Steel Construction — 304-grade stainless steel with fully welded and polished seams resists corrosion and ensures long-term hygiene in demanding environments.

Heavy-Duty Mobility — Four strong wheels with brake allow secure positioning and controlled movement despite the unit's large size and weight.

OEM and Custom Accepted — Size customization, body tray type options, and additional functions (LED, UV sterilization, ozone purification) available on request.

FAQ

1. How many bodies can the AJLRD-9 store?

The AJLRD-9 has nine independent chambers, each accommodating one body tray. It is designed for high-volume facilities such as large hospital morgues and forensic centers.

2. What are the optional functions available?

The AJLRD-9 supports LED interior lighting, drain system, UV sterilization, ozone purification, remote alarm notification, and temperature recording system. Contact us for configuration details.

3: What are the power requirements?

The AJLRD-9 operates at 220V/50Hz (110V/60Hz optional), drawing 2520W/1.2A. A dedicated circuit is recommended for this high-capacity unit.

4: Can the AJLRD-9 be customized?

Yes. OEM configurations are accepted including size modifications, body tray type changes, material upgrades (316 stainless steel), and integration of optional functions. Contact our engineering team.
