AJLRD-1531E

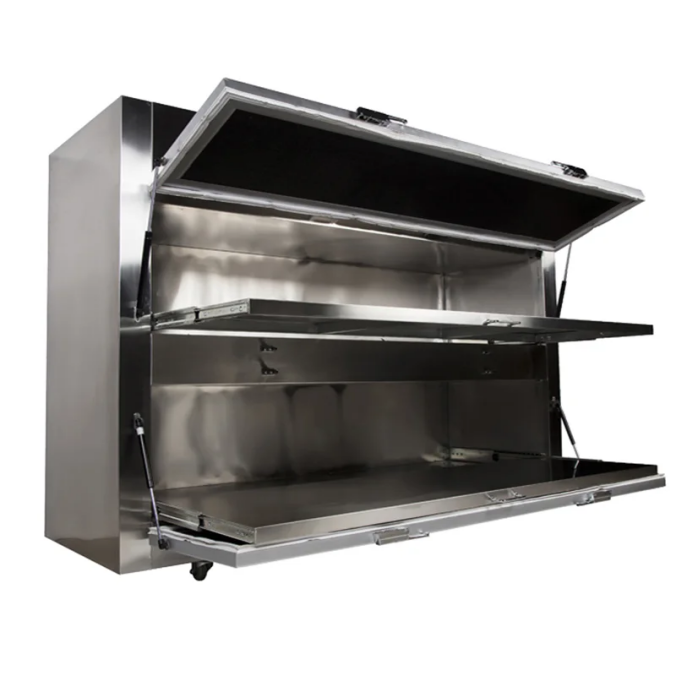

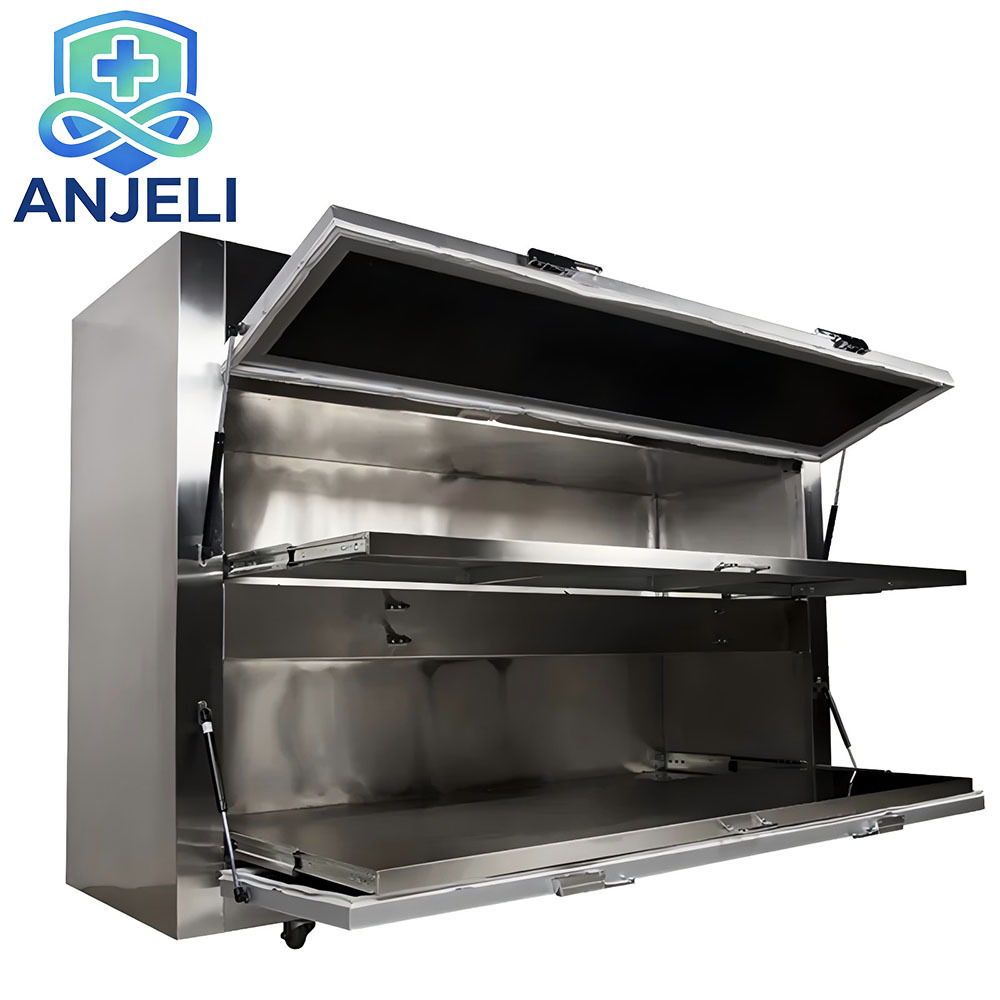

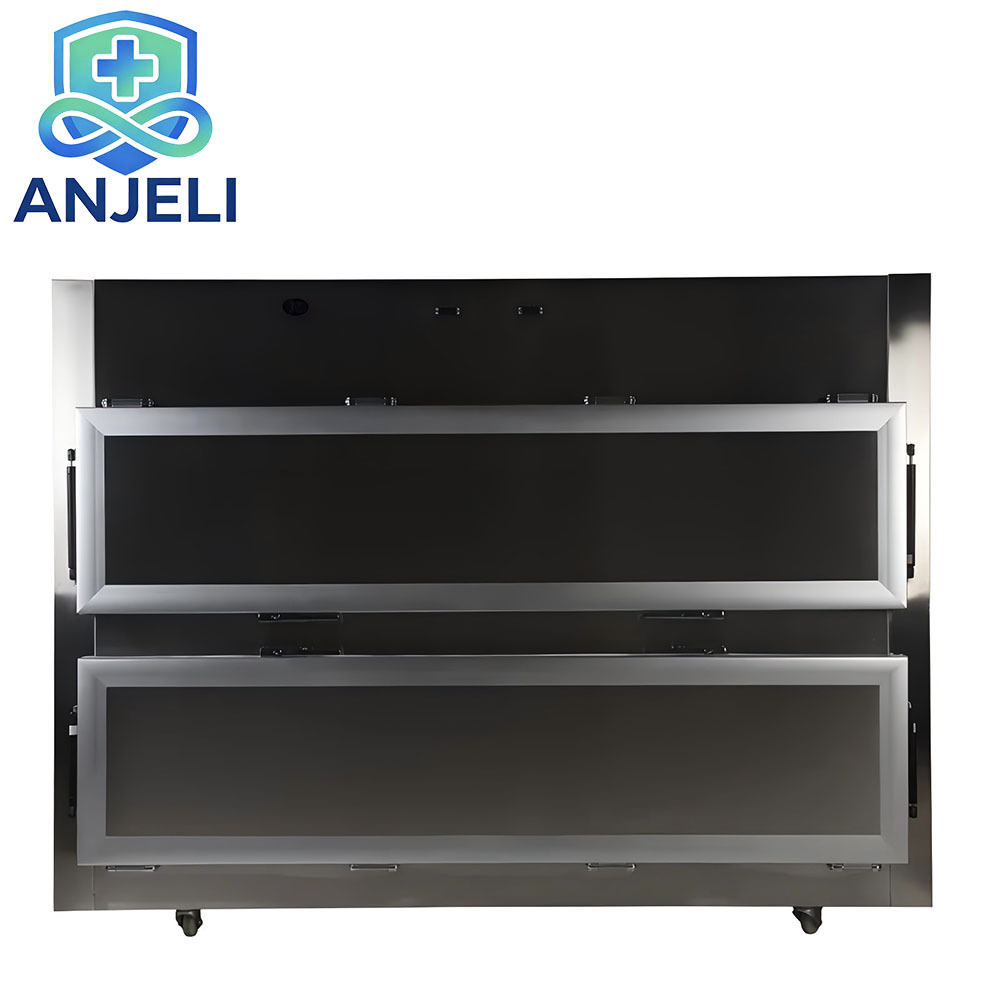

AJLRD-2S 2-Body Side-Opening Mortuary Refrigerator
Product Overview
The AJLRD-2S is a 2-body side-opening mortuary refrigerator designed for facilities where space efficiency is critical. Unlike front-opening models, the side-access doors allow flush wall placement — ideal for narrow corridors and compact morgue layouts. Built from full 304-grade stainless steel with fully welded and polished seams, the AJLRD-2S combines space-saving design with reliable SECOP compressor cooling.
Key Specifications at a Glance
Capacity: 2-Body | Door: Side-Opening | Material: 304 Stainless Steel | Compressor: SECOP
Custom Design Solutions Available
We provide tailored design proposals and accept full customization — dimensions, materials, temperature ranges, configurations, and facility-specific integrations.
Technical Specifications
Model AJLRD-2S
Configuration 2 compartments, side-opening doors
Material Stainless Steel 304 (optional: 316)
External Size 2150 × 800 × 1780 mm
Outer Packing Size 2200 × 860 × 1870 mm
Volume 3.6 m³
Rate of Work 560 W / 1.2 A
Body Tray Size 1940 × 580 mm
Compartment Inner Size 1950 × 630 × 440 mm
Compressor SECOP
Compressor Position Rear-mounted
Refrigerant SECOP compressor: R404A / R452A | Chinese compressor: R134A
Temperature Range Standard: 0 to -10°C (±1°C) | Adjustable: 5°C to -15°C
Temperature Control Independent per compartment
Insulation High-density blowing agent filling
Alarm System Temperature deviation alert
Voltage 220 V / 50 Hz (110 V / 60 Hz)
Mobility Heavy-duty casters with brake
Welding Fully welded and polished
Key Features
Space-Saving Side Opening — Doors open from the side rather than the front, allowing flush wall placement and maximizing usable floor space in narrow morgue corridors.

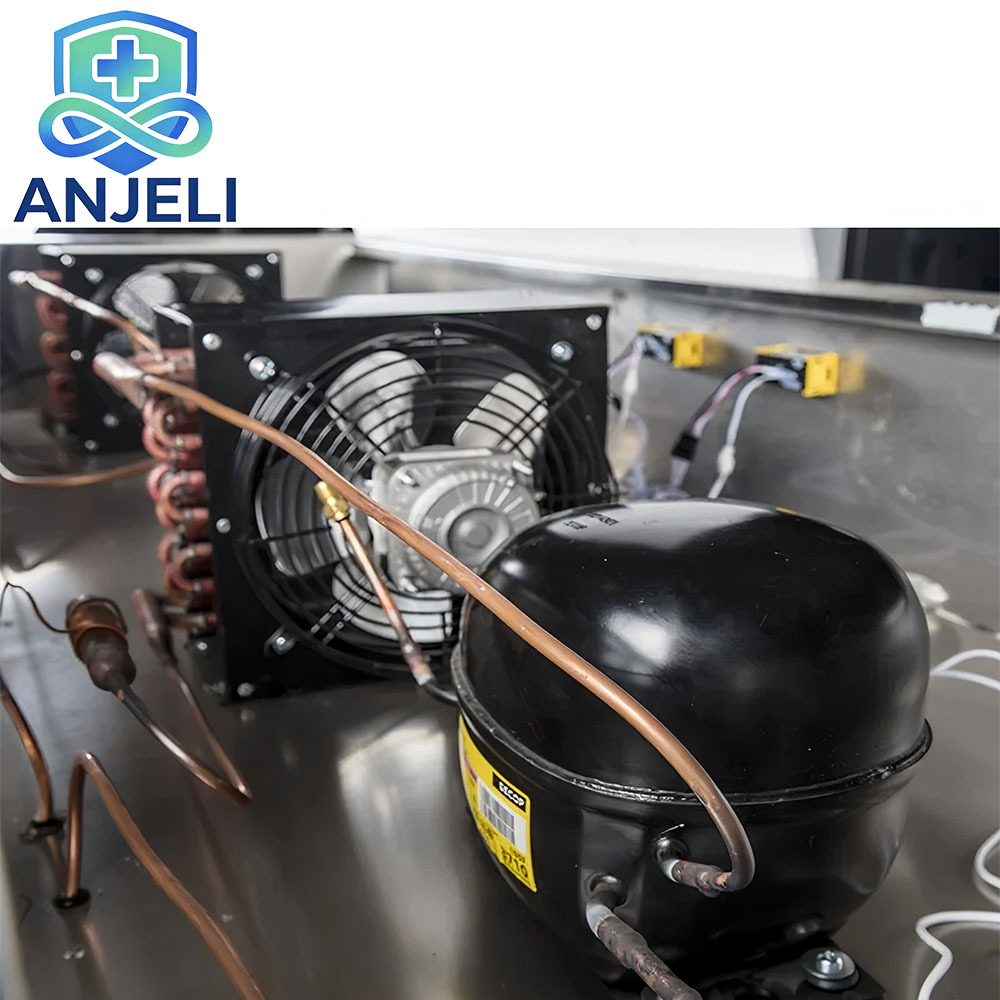

SECOP Compressor & mdash; Delivers consistent, energy-efficient cooling with a long service life and global service network.
Independent Compartment Control — Each compartment has dedicated temperature control for different preservation requirements simultaneously.
Full Stainless Steel Construction — 304-grade stainless steel with fully welded and polished seams resists corrosion from mortuary cleaning agents.
High-Density Insulation — Blowing agent filling provides superior thermal retention, reducing compressor runtime and energy consumption.
Mobility with Stability — Heavy-duty casters with brake allow repositioning, then lock securely in place.
OEM and Custom Accepted — Dimension modifications, material upgrades, and additional features available on request.
FAQ
What is the advantage of side-opening doors?
Side-opening doors allow the AJLRD-2S to be placed flush against a wall, saving valuable floor space. This is ideal for smaller morgues, narrow corridors, and facilities where front clearance is limited.
How does the AJLRD-2S differ from the AJLRD-2?
The AJLRD-2S has side-opening doors for space-efficient installation, while the RD-2 features front-opening doors. Both models share the same internal specifications, compressor, and temperature range.
What is the difference between SECOP and Chinese compressor options?
The SECOP compressor uses R404A or R452A refrigerant and is preferred for its proven reliability and global service network. The Chinese compressor uses R134A and offers a more cost-effective option.
Does the AJLRD-2S require professional installation?
The AJLRD-2S is delivered pre-assembled and requires only a standard power connection. It is shipped on casters for easy positioning. Roundfin provides an installation manual and remote technical support.
