AJLRD-1531E

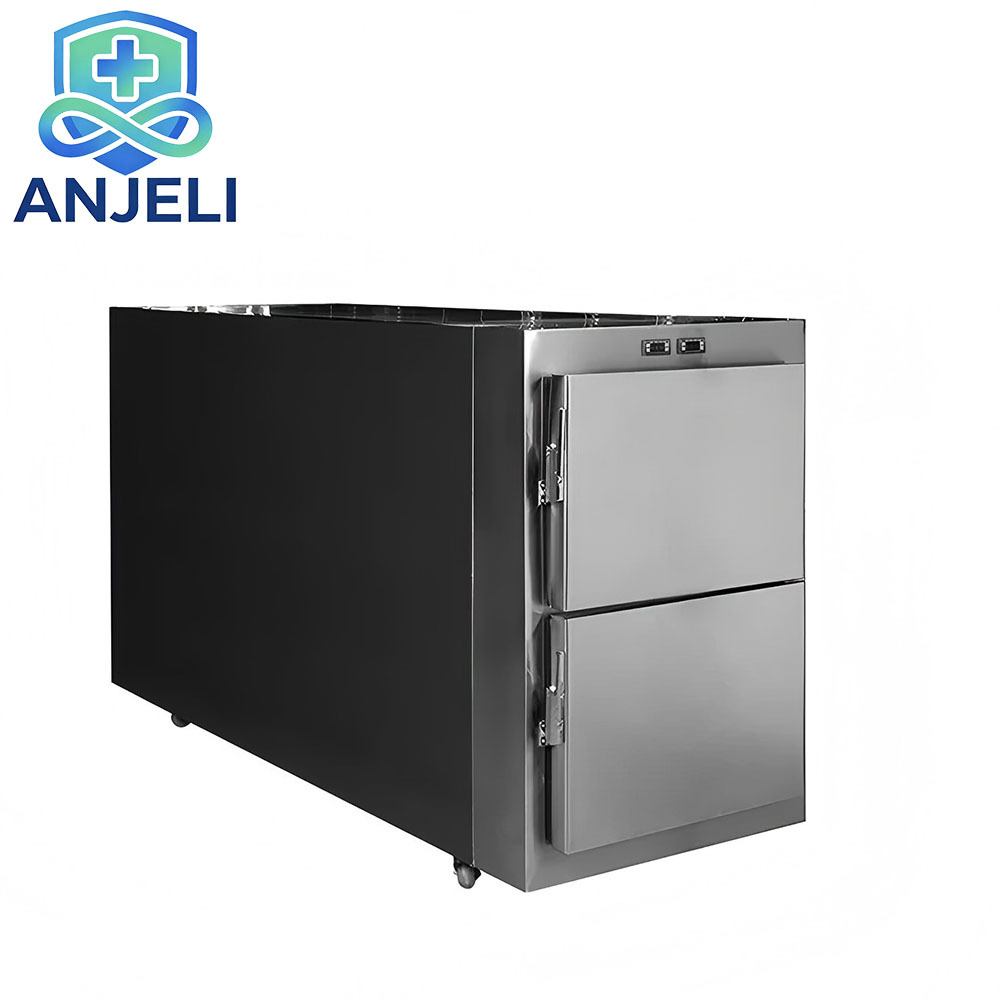

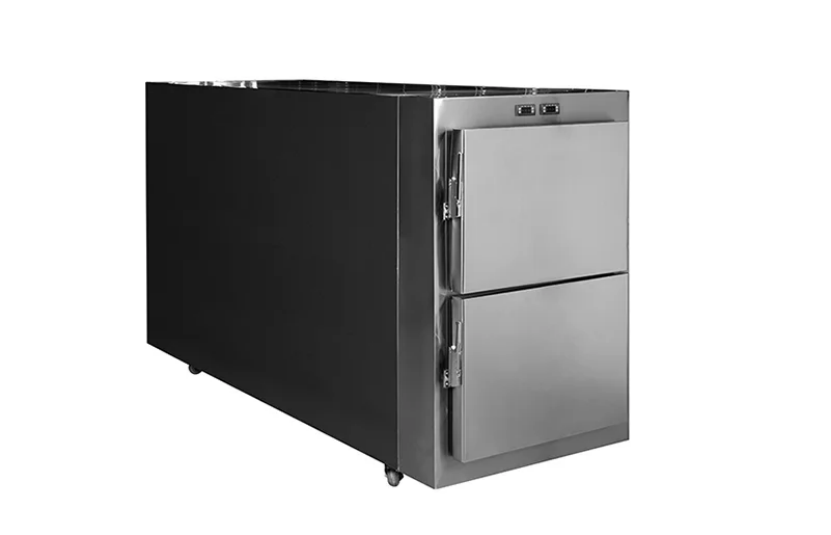

AJLRD-2 2-Body Mortuary Refrigerator
Product Overview
The AJLRD-2 is a 2-body front-opening mortuary refrigerator designed for hospital morgues, funeral homes, and forensic facilities. Each compartment operates independently with dedicated temperature control, providing flexible storage conditions for different preservation requirements. Built from full 304-grade stainless steel with fully welded and polished seams, the AJLRD-2 combines durability with reliable, energy-efficient cooling powered by a SECOP compressor.
Key Specifications at a Glance
Capacity: 2-Body | Material: 304 Stainless Steel | Compressor: SECOP | Temperature: 0 to -10°C
Custom Design Solutions Available
We provide tailored design proposals and accept full customization — dimensions, materials, temperature ranges, configurations, and facility-specific integrations. Contact our engineering team to discuss your project requirements.
Technical Specifications
Model AJLRD-2
Configuration 2 compartments, front-opening doors
Material Stainless Steel 304 (optional: 316)
External Size 2280 × 800 × 1275 mm
Outer Packing Size 2320 × 850 × 1420 mm
Volume 3.2 m³
Rate of Work 560 W / 1.2 A
Body Tray Size 1940 × 580 mm

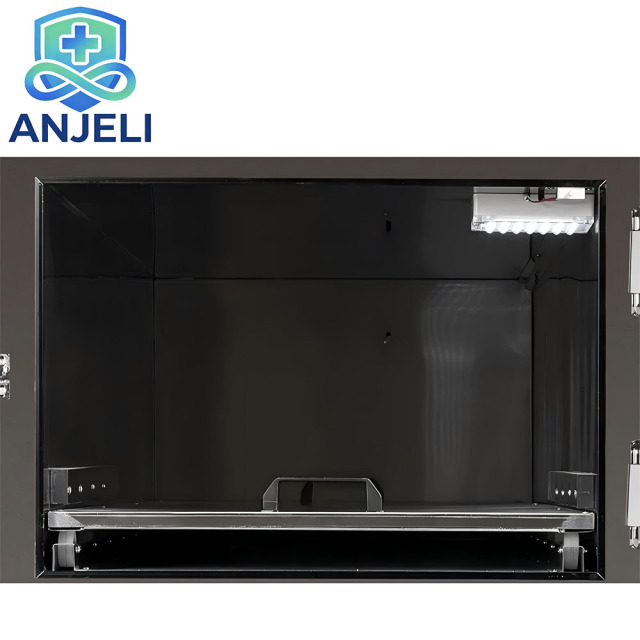

Compartment Inner Size 1950 × 630 × 440 mm
Thickness Outer: 1.0 mm | Body tray: 1.0 mm | Inner: 0.6 mm
Compressor SECOP
Compressor Position Rear-mounted
Refrigerant SECOP compressor: R404A / R452A | Chinese compressor: R134A
Temperature Range Standard: 0 to -10°C (±1°C) | Adjustable: 5°C to -15°C
Temperature Control Independent per compartment
Insulation High-density blowing agent filling
Alarm System Temperature deviation alert
Voltage 220 V / 50 Hz (110 V / 60 Hz)
Mobility Heavy-duty casters with brake
Welding Fully welded and polished
Key Features

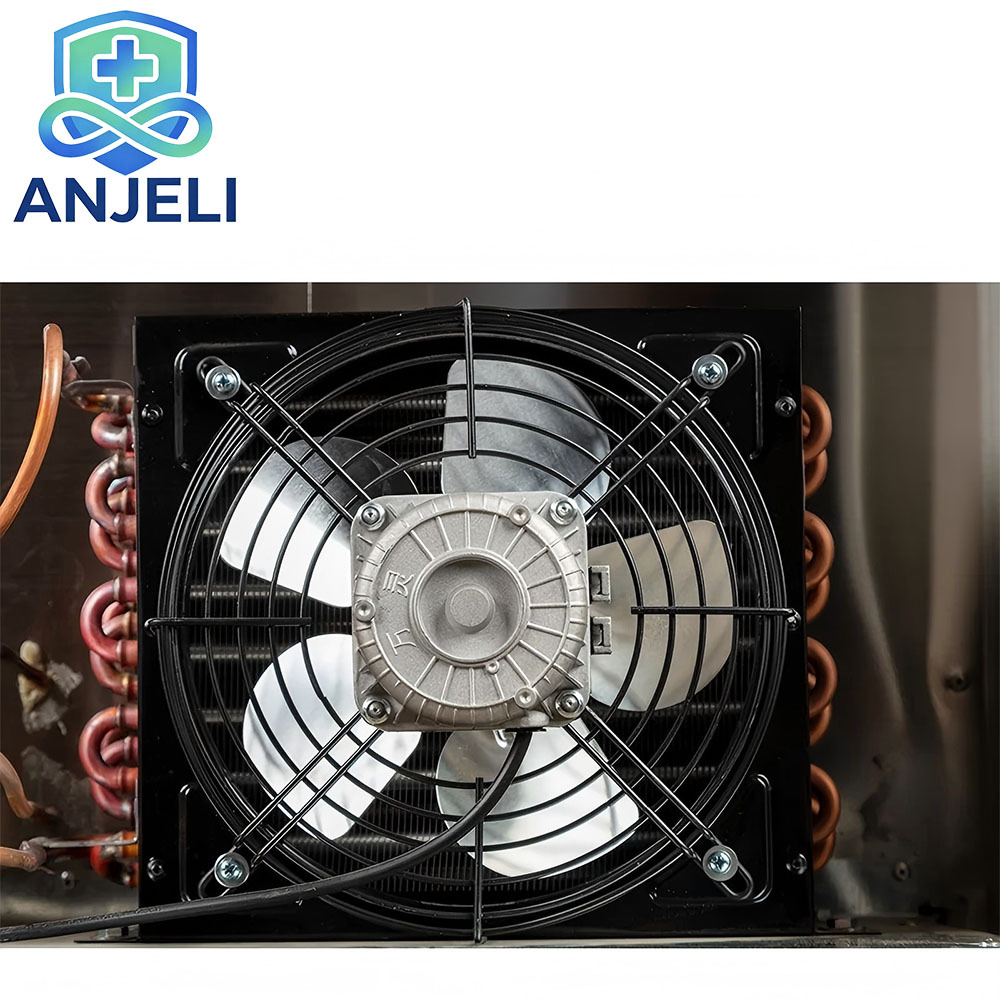

SECOP Compressor — One of the most trusted compressor brands in commercial refrigeration. Delivers consistent, energy-efficient cooling with a long service life.
Independent Compartment Control — Each of the 2 compartments has dedicated temperature control, allowing different preservation conditions for different cases simultaneously.

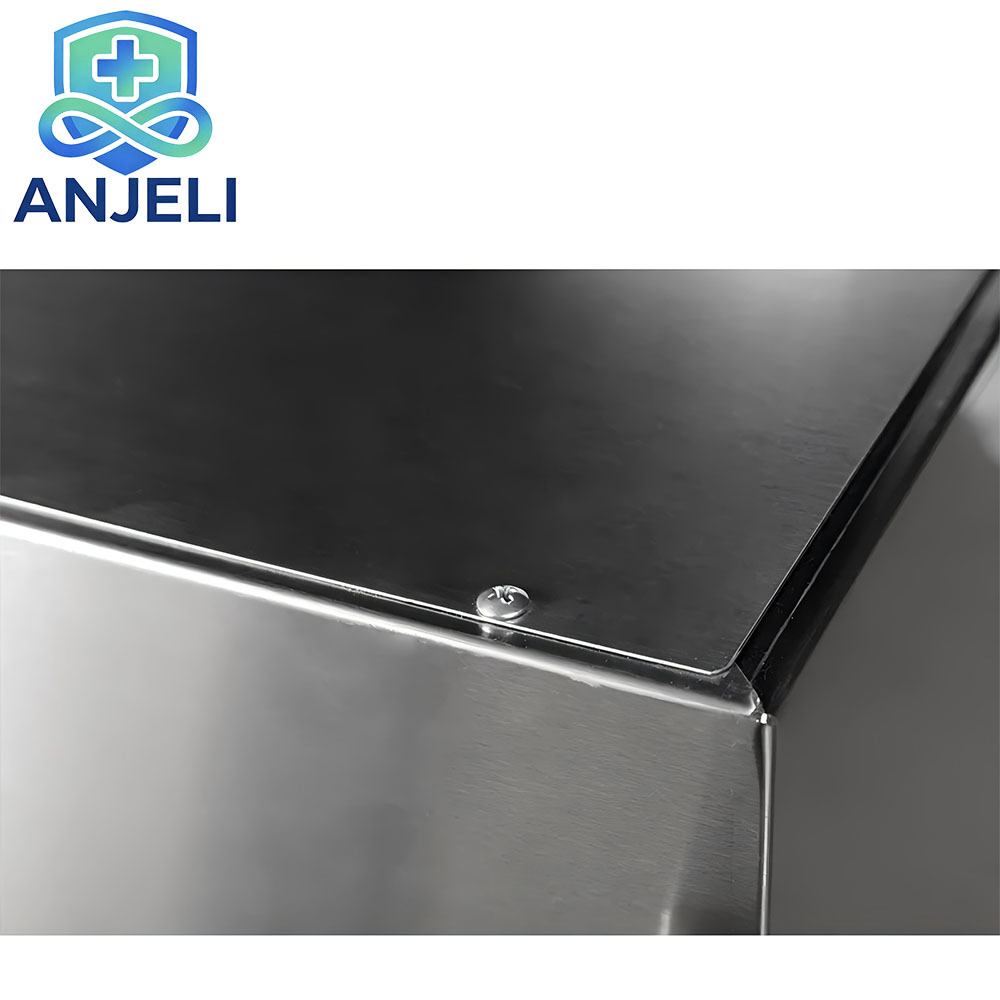

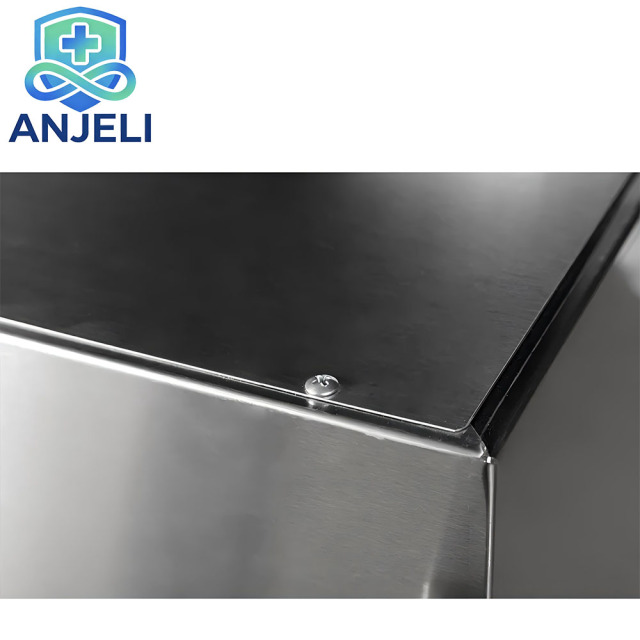

Full Stainless Steel Construction — 304-grade stainless steel body and trays with fully welded and polished seams. Resists corrosion from mortuary cleaning agents and ensures long-term hygiene.
High-Density Insulation — Blowing agent filling provides superior thermal retention, reducing compressor runtime and energy consumption.
Built-in Alarm System — Temperature deviation alert immediately notifies staff of any cooling irregularities, protecting body preservation integrity.
Mobility with Stability — Heavy-duty casters with brake allow repositioning for cleaning or layout changes, then lock securely in place.
OEM and Custom Accepted — Dimension modifications, material upgrades, temperature range adjustments, and additional features available on request.
FAQ
How many bodies can the AJLRD-2 store?
The AJLRD-2 has 2 independent compartments, each accommodating one body tray. It is designed for facilities needing reliable multi-body storage with separate temperature zones.
What is the difference between SECOP and Chinese compressor options?
The SECOP compressor uses R404A or R452A refrigerant and is preferred for its proven reliability and global service network. The Chinese compressor uses R134A refrigerant and offers a more cost-effective option. Both deliver the same temperature range.
Can the temperature be adjusted?
Yes. Each compartment can be independently set between 5°C and -15°C. The standard factory setting is 0 to -10°C (±1°C).
Does the AJLRD-2 require professional installation?
The AJLRD-2 is delivered pre-assembled and requires only a standard power connection. It is shipped on casters for easy positioning. ANJELI-MED provides an installation manual and remote technical support.
