AJLRD-1531E

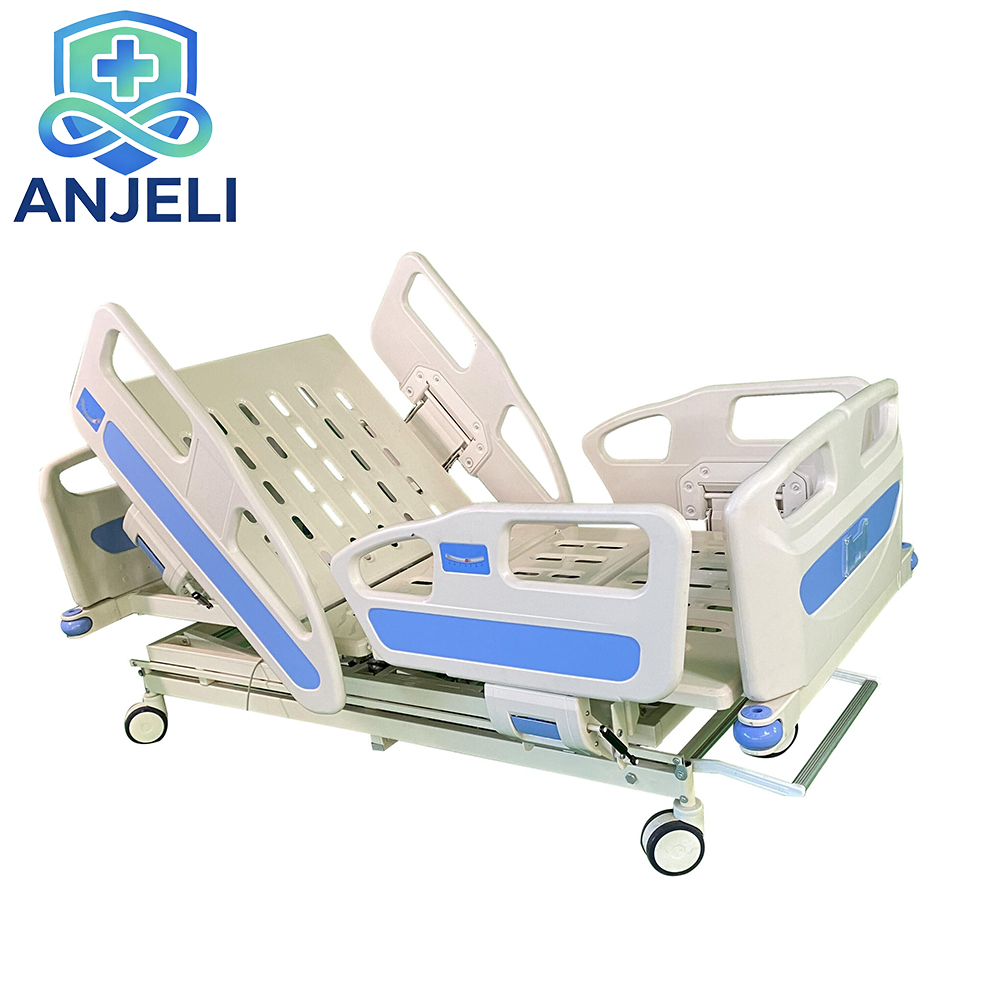

Model:AJLHB-D7H
Functions: back lifting, leg lifting, overall lifting, front and back tilting, left and right tilting
Size: L×W×H: 2120*1050*520-750mm
1、The bed frame is welded with 60×30×1.2mm thick steel pipe, and the carrying capacity of the bed is 300kg.
2、Bed plate is made of 1.2mm high-quality cold-rolled steel plate, one-time stamping molding, with ventilation holes, with reinforcement.
3、Function: backboard folding angle 0º-70º±5°, leg board folding angle 0º-45º±5, the overall height range of 500-740mm. front tilt 12 °, back tilt 12 °, left and right tilt
4、The head of the bed is made of PP blow molding, pulling and inserting type with anti-collision wheels, without tools installation, can also do CPR function, the bed tail board has patient information card slot.
5、Steel molding process
6、24v DC electric actuator, maximum thrust 6000n.
7、4 pieces PP guardrail, lifting type, with buffer spring.
8、5 inch center control universal casters
9、Bed body reserved for infusion pole hole, stainless steel telescopic infusion pole.
10、With 4 drainage hooks.
11, 8 cm mattress, 4 cm environmental protection brown silk + 4 cm high-density sponge, waterproof fabric, with zipper.
Configuration list:
One bed, four guardrails, one set of center control wheels, one 8cm mattress, two headboards, five motors, one total controller, one remote control, one infusion frame
12, with a nurse panel, convenient for nurses to operate.
