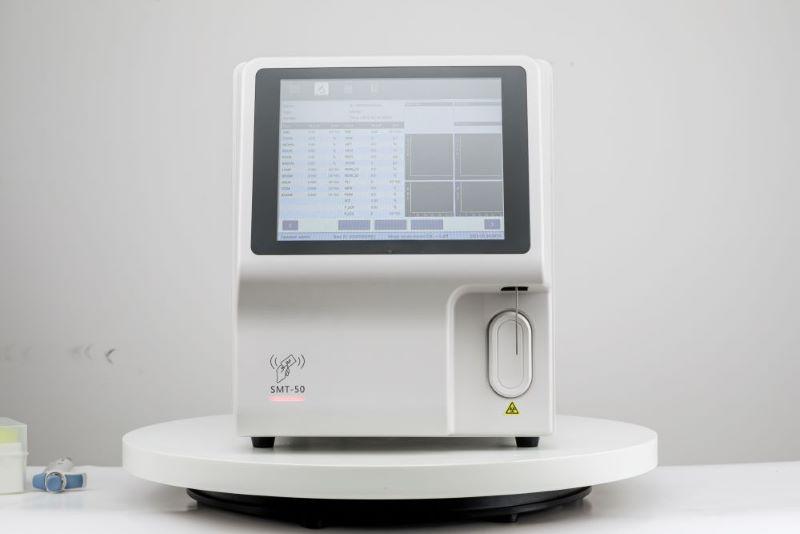

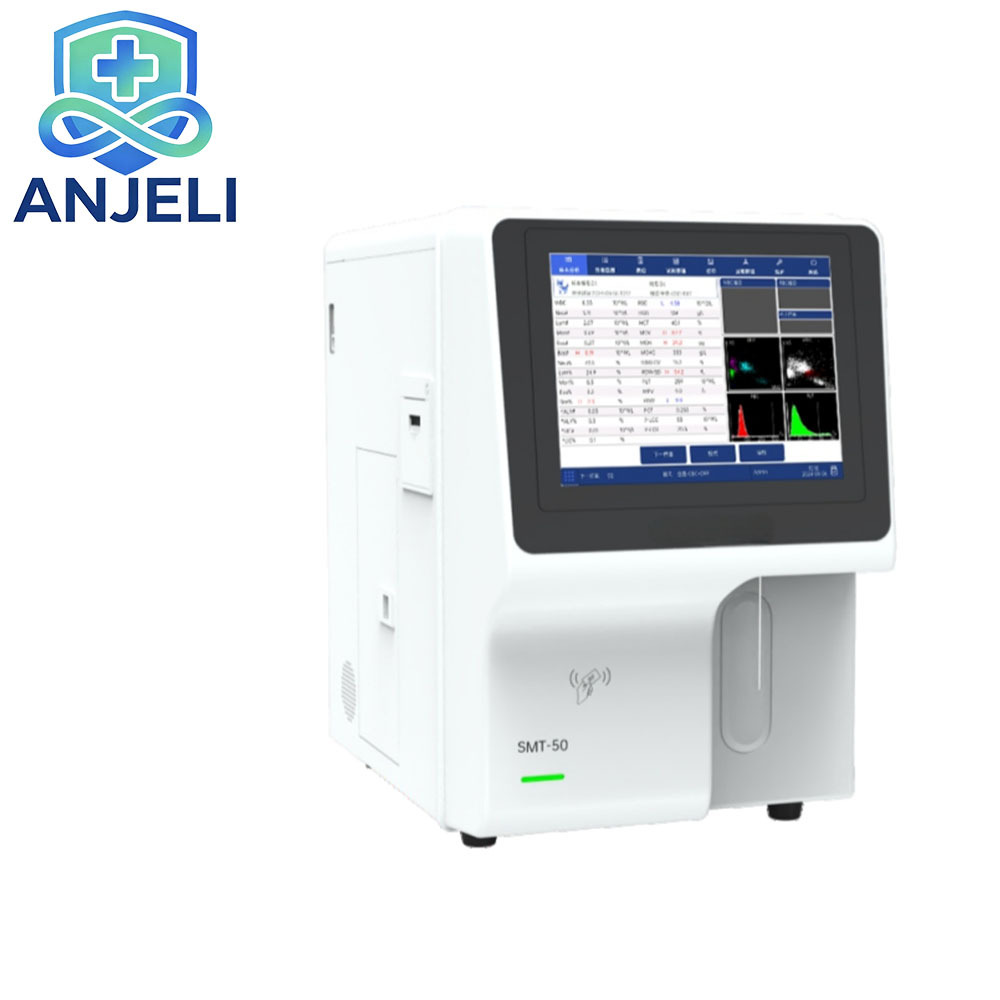

5-Part Hematology Analyzer AJLHA-SMT50

Power

Voltage: AC 100V~240V, 50/60Hz; Rated Power: 100~120VA

Sample Consume

- Only need three reagents
- Sample consumed ≤20μL

Compatibility

- Two modes of sampling: Whole blood, pre-diluted blood
- Three modes of test: CBC, CBC+5Diff and CBC+5Diff+RRBC
- External printer or thermal printer
- 4 USB, 1 LAN support protocol HL7 and compatible with LIS system
- Accompanying quality control material

Display

- 10.4" colorful touchscreen
- Liquid Crystal Display
- Resolution: 1024×768
- 10° incline adapt to visual observation

Efficient

60 samples/hour

Principle

Flow cytometry and multi-angular laser scattering, Electric impedance method and Colorimetry

Parameters

Reportable Parameters (25 items)
WBC, LYM#, MON#, NEU#, EOS#, BAS#, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC Research

Parameters (4 items)
ALY%、ALY#、IG%、IG#
2 histograms and 2 scattergrams

Reagents

Build-in DIFF Lyse, LH Lyse, External Diluent, Probe Cleaner for maintenance

Flag System

RBC, WBC, PLT abnormal sample and support customized test groups

Storage

Up to 50,000 results including histograms, scattergrams and patient information.

Quality Control

3 Level QC, L-J graph, X-B

Calibration

Manual and Auto-calibration

Accessories

Standard: keyboard, waste liquid barrel, ground wire(3m); Option: mouse, external barcode scanner

Dimension (L*W*H)

500mm(L)×320mm(W)×390mm(H)

Weight

25 Kg

Operational Environment

Working Temperature: 10℃~35℃; Relative Humidity: 20%~85%
