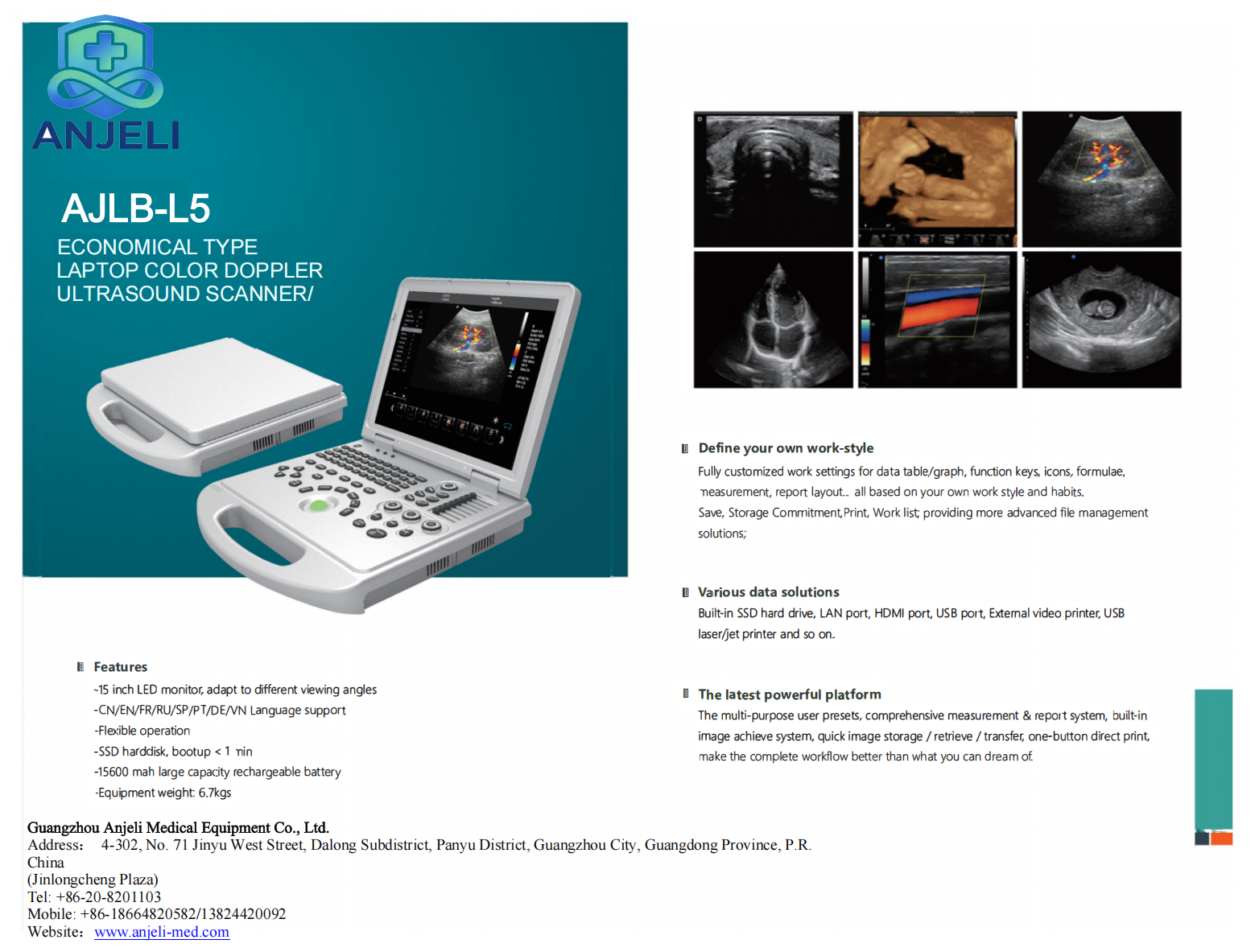

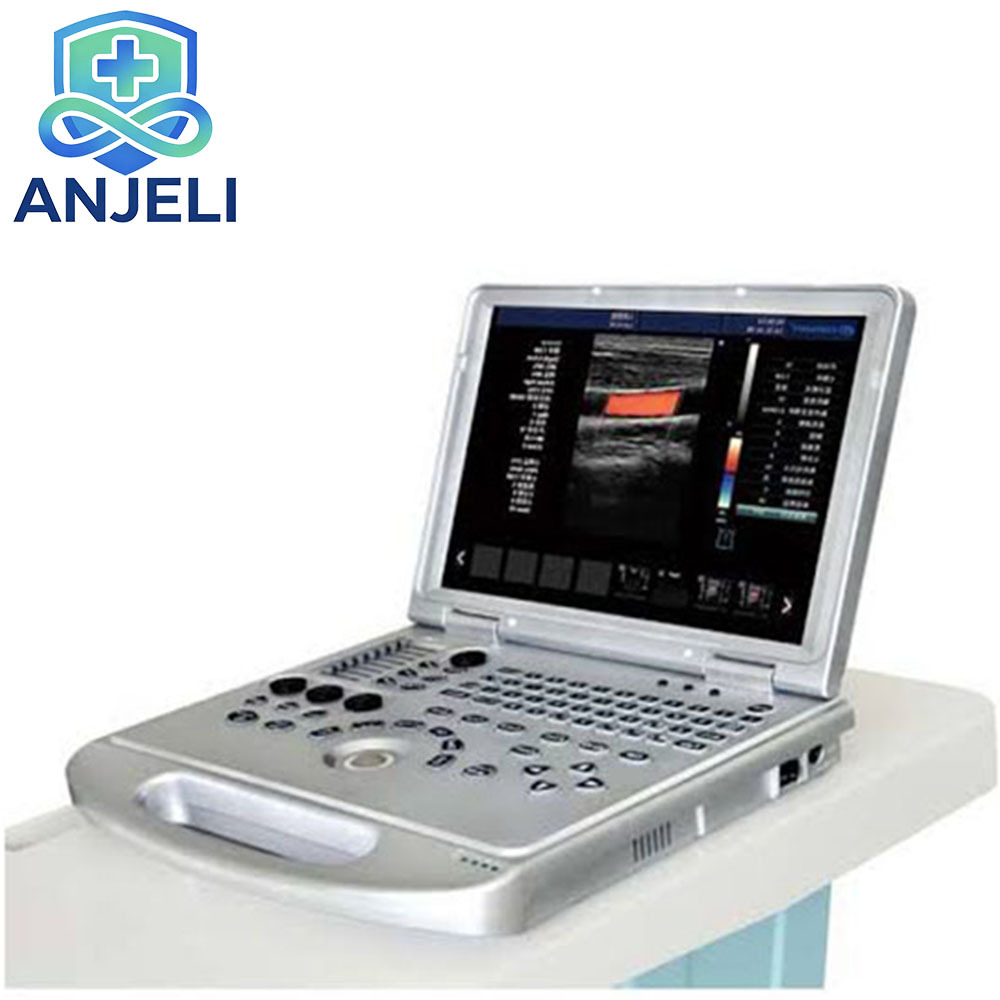

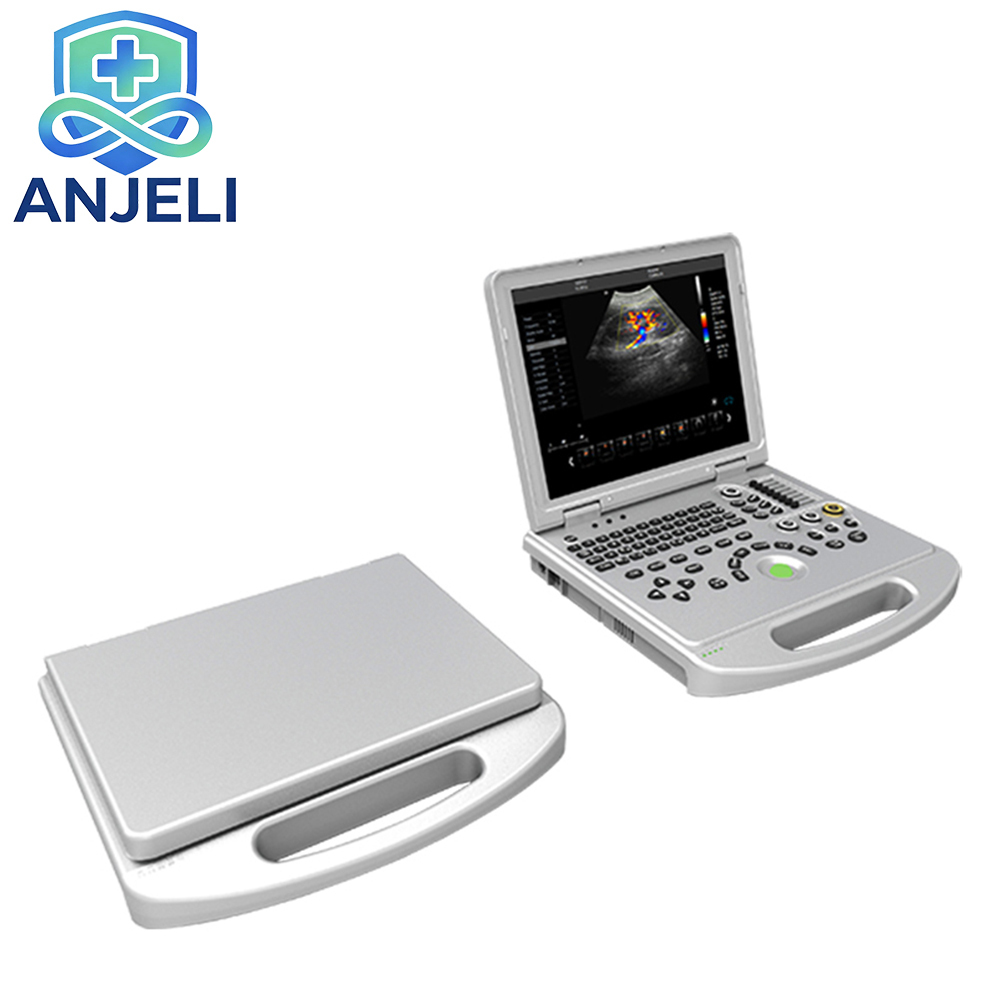

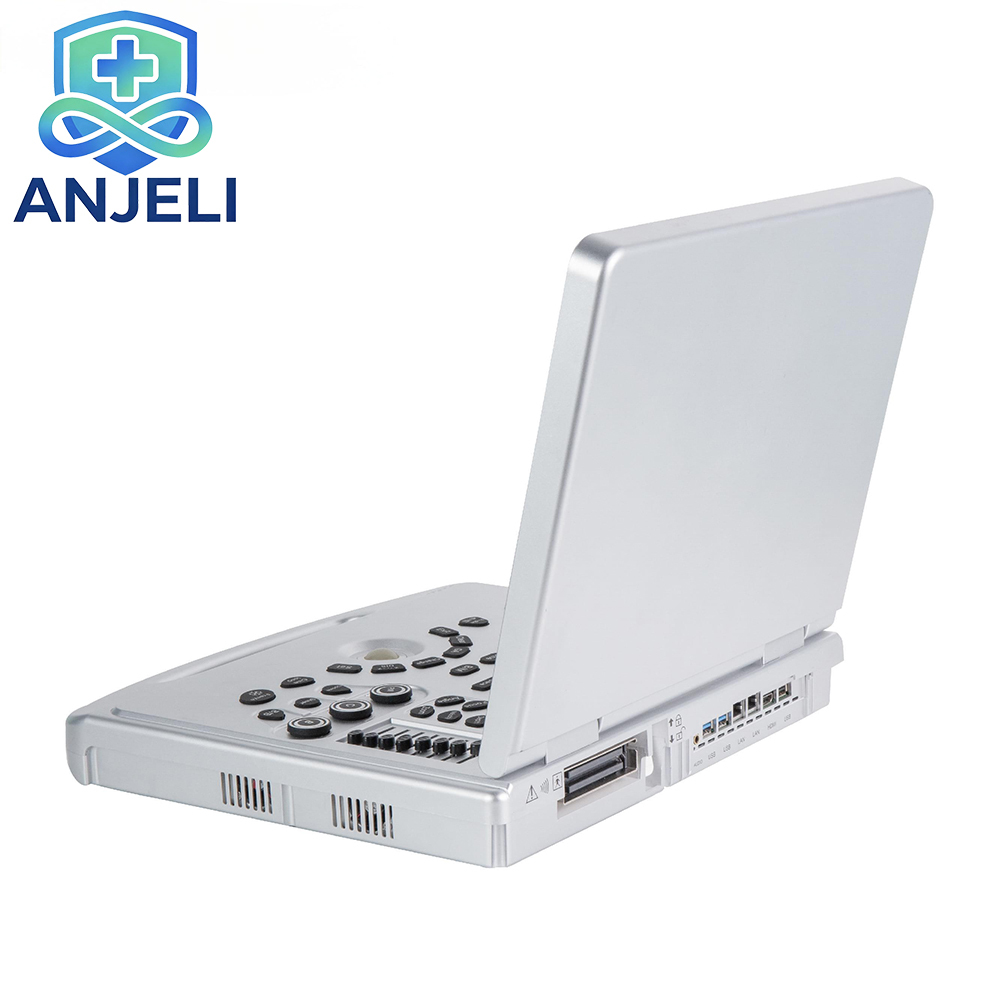

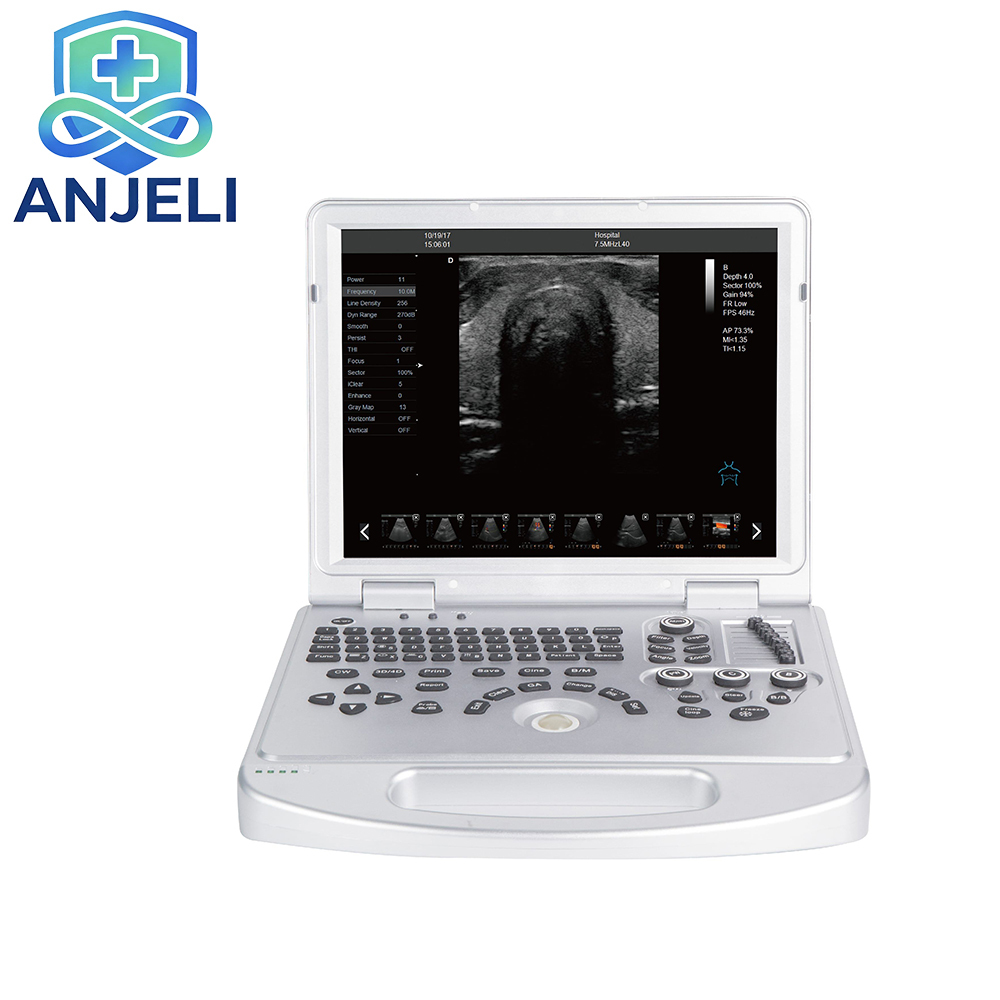

AJLB-L5 Medical Portable Color Doppler Ultrasound machine

Parameter:

Detection depth: ≥ 300mm.

Lateral resolution: ≤ 1mm (depth ≤ 80mm)

                  ≤ 2mm (80

Vertical resolution: ≤1mm(depth≤80mm)

                  ≤2mm(80

Blind zone: ≤ 5 mm.

Precision geometric position: Horizontal ≤ 10%.

                            Longitudinal ≤ 10%.

Signal channels: 64 channels

Display: 15 inch LED monitor.

PAL output interface

Grey Scale: 256

Power range: AC220V ± 10% 3A.

Host Power: DC12.8V 11.5A

Input power: ≤ 300VA.

Continuous working time: ≥ 8h.

-Application

Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc

-Displaying mode

B, 2B, 4B, left& right, B|M, B|D, PW, M, B mode, part zoom,  B|C|D, B|C|M, B|C,

duplex, PW, CFM, CPA

-Signal processing

Full-digital beam forming,

dynamic filter, orthogonal

demodulating,

space-time filter, dynamic

real-time receiving focusing, RDA, DRA, spectral processing, CFM processing

-Image processing

THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256

grey scale, scanning angle/width control, composit processing of tissue and blood flow image

-General measurement

B mode: distance, angle, perimeter and area (ellipse method, Trace method), volume, histogram,

cross-section diagram

M mode: cardiac rate, time, distance, speed.

-Measurement & report packages

GYN(four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc.

-Storage function

Probe parameter, image, cine loop, measurement data and report

-Cine loop

Operated by automatically and manually, speed optional, searching cine loop, forward/ backward cine loop

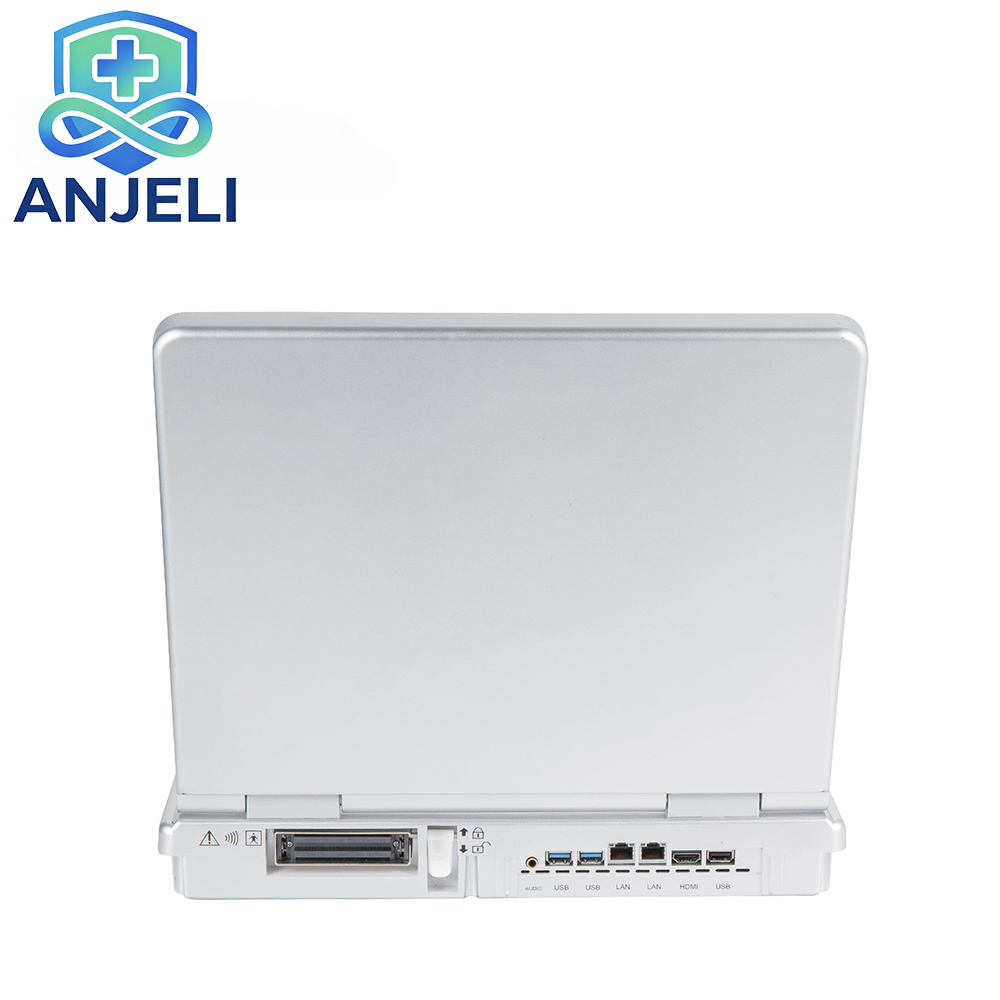

- Input/output interface

VGA, network, USB, VIDEO, parallet communication port, serial communication port

-Standard configuration

Main unit, 3.5MHz Multi-frequency convex probe(2.0, 3.0, 3.5, 4.0,5.5MHz),

15" LED monitor, USB port

DICOM3.0
