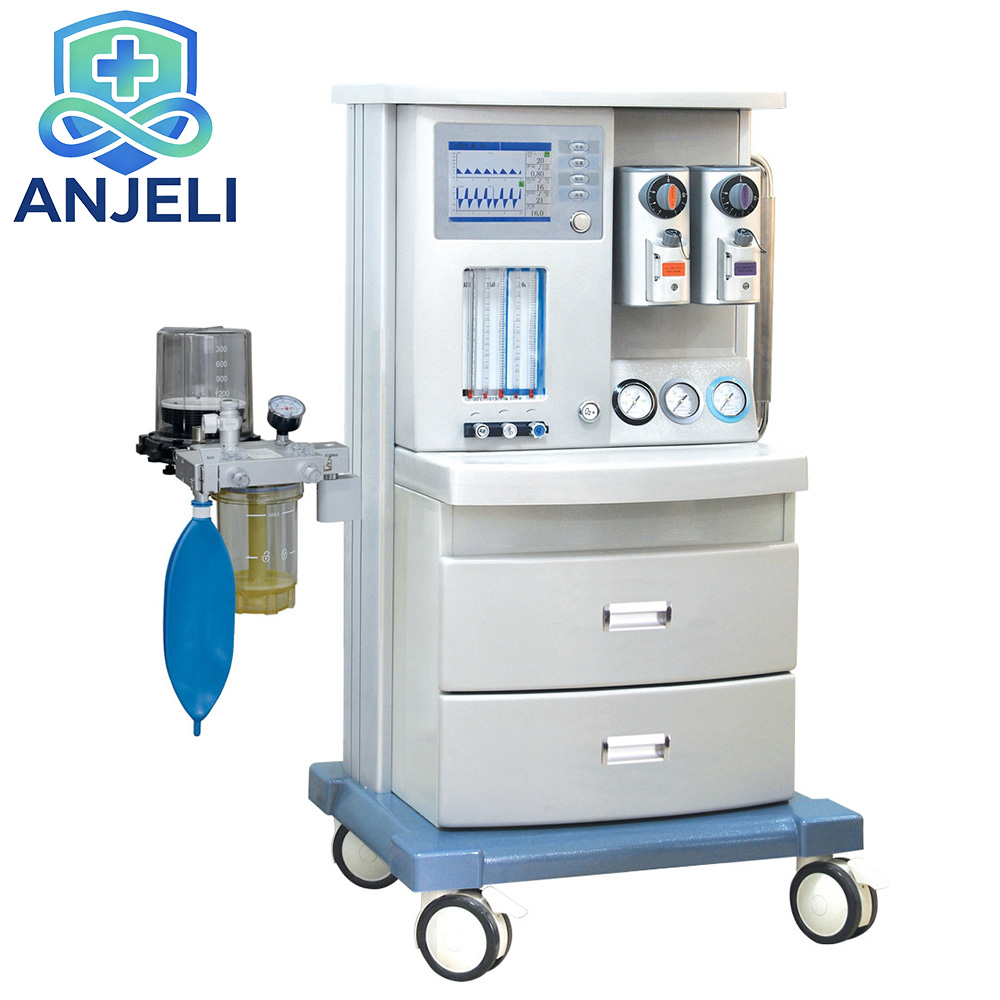

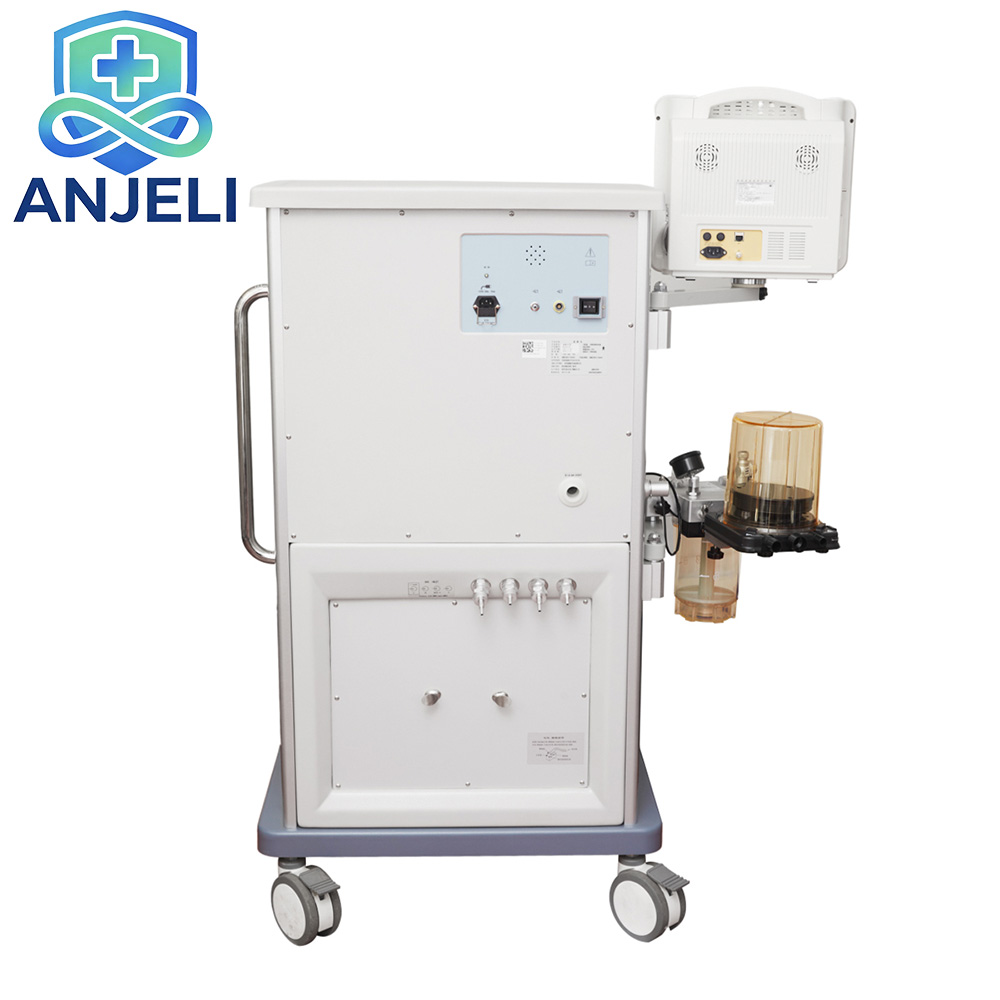

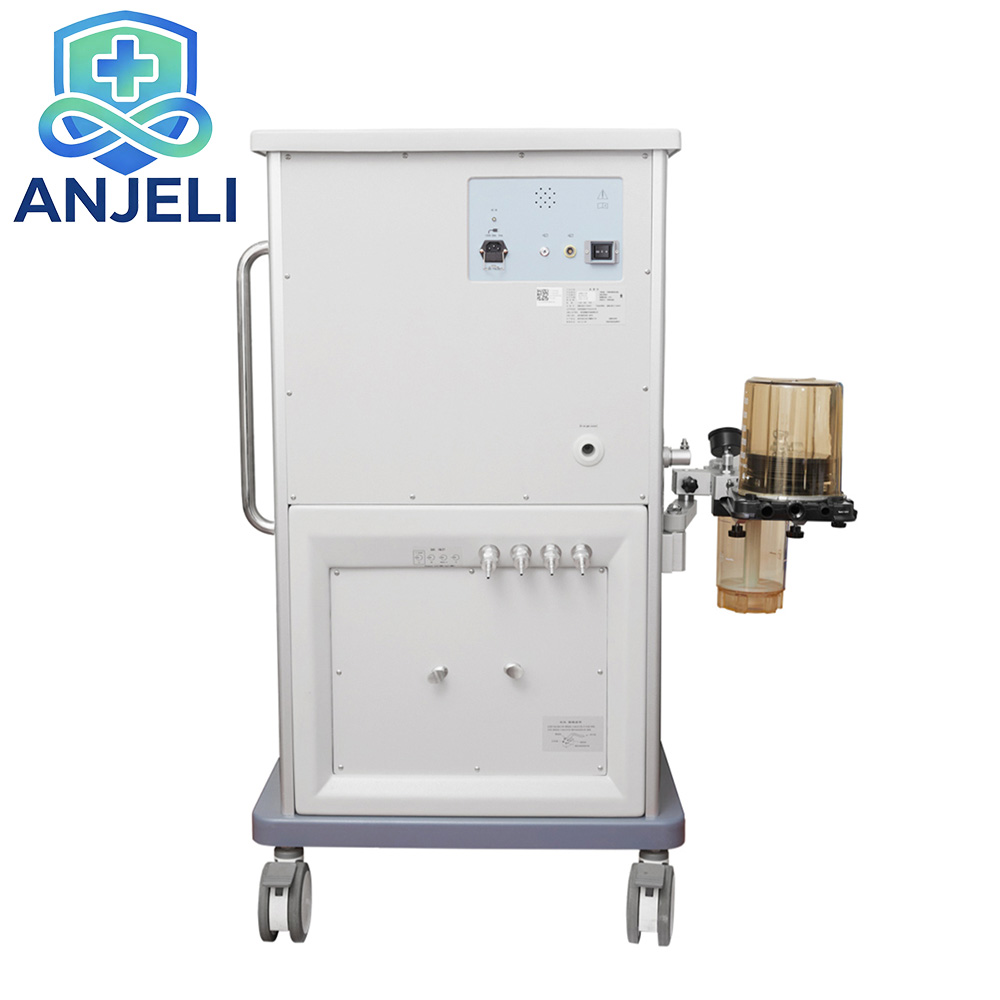

Advance Anesthesia Machine AJL-AM850S

This paragraph anesthesia machine adopts advanced and stable APL valve device, suitable for low flow anesthesia, color LCD screen, can display time pressure, flow time and pressure-volume loop, with oxygen concentration monitoring, and optional plug-in patient monitoring, composition anesthesia workstation.

Specifications

Anesthesia ventilator

• Pneumatically driven electronically controlled system
• Built-in ventilator, 10.4” LCD display
• With 1 patient circuit for adult (Optional:patient circuit for children)
• 5-tube flowmeters, O2 & N2O & Air;0.1L/Min ~ 10 L/Min;
• Two vaporizers,Enflurane/Isoflurane/Sevoflurane; (Optional: Halothane)
• Oxygen Flush: 25~75 L/Min;
• Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh
• Tidal Volume: 0~1500 mL;I:E: 8:1~1:10
• Respiration Frequency: 1~99bpm;
• PEEP: 1~10 hPa;
• Ptr: -10~10 hPa;
• CO2 absorber capacity: 1 kg
• Lung compliance: ≤ 30mL/kPa;
• IMV frequency: 1~12bpm
• Inspiratory Plateau: 0~1S;
• O2 Concentration: 21%~100%
• Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceed limitation, no tidal volume output, apnea,AC power malfunction, battery low power

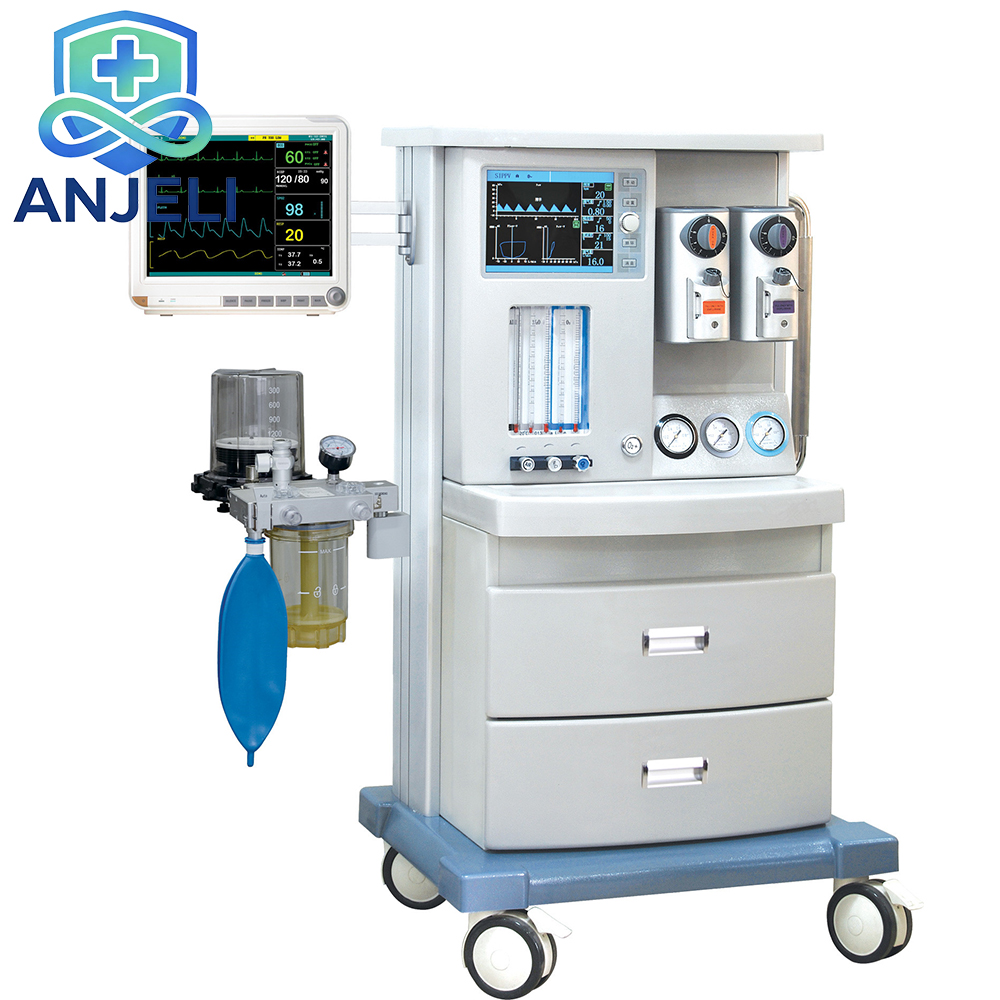

Patient Monitor

• 1''TFT large screen of high resolution
• ECG: 5-lead, gain:×5mm/mV ×5.0mm/mV×10mm/mV ×20mm/mV, analysis of ST segment and abnormal of heart rate(anti-defibrillate, anti-HF    electrotome)
• Heart Rate: 20~250bpm
• RESP: Impedance, range: 0~100bpm
• SpO2: 0%~100%
• Pulse Rate: 20~250bpm
• NIBP: SBP, DBP, MBP, 10~270mmHg interval ofautomatic measurement 1~90min adjustable
• TEMP: 0~50ºC
• Alarm: Audio and visual alarm
• Tendency record 96 hours


  Loop part

  Integrated design, integrated breathingcircuit

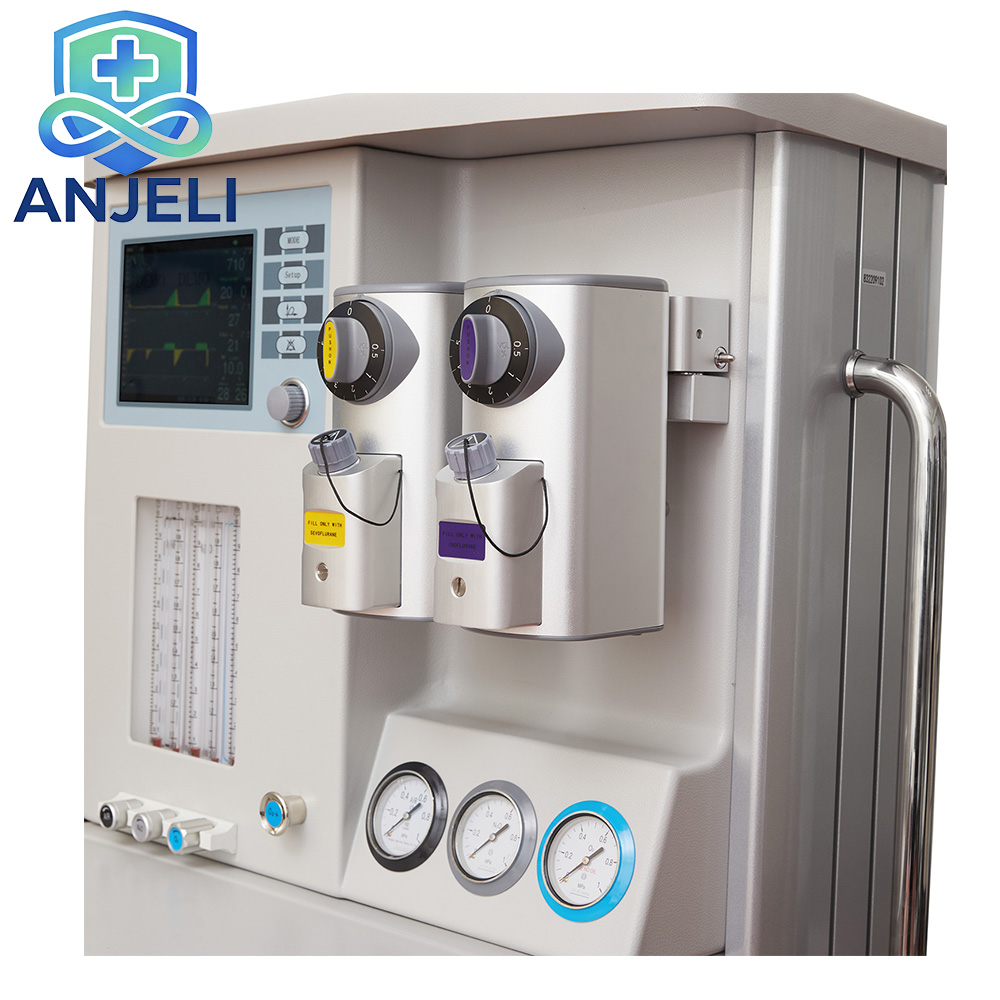

  Evaporator

  • High-precision double evaporators configuration, enflurane or isoflurane or Sevflurane or Haloflurane
  • Concentration adjustment range: 0.5 ~ 5%VOL
  • Evaporator flow, pressure, and automatictemperature compensation function
  • Self-locking feature



  Configuration

  • Vaporizer: Two vaporizers, Enflurane/Isoflurane/Sevoflurane(Option: Halothane)
  • Anesthesia gas concentration range: 0.5~5%
  • Soda lime absorption system： resistance tohigh temperature of 176 degrees Celsius.
  • ISO certificates approved
