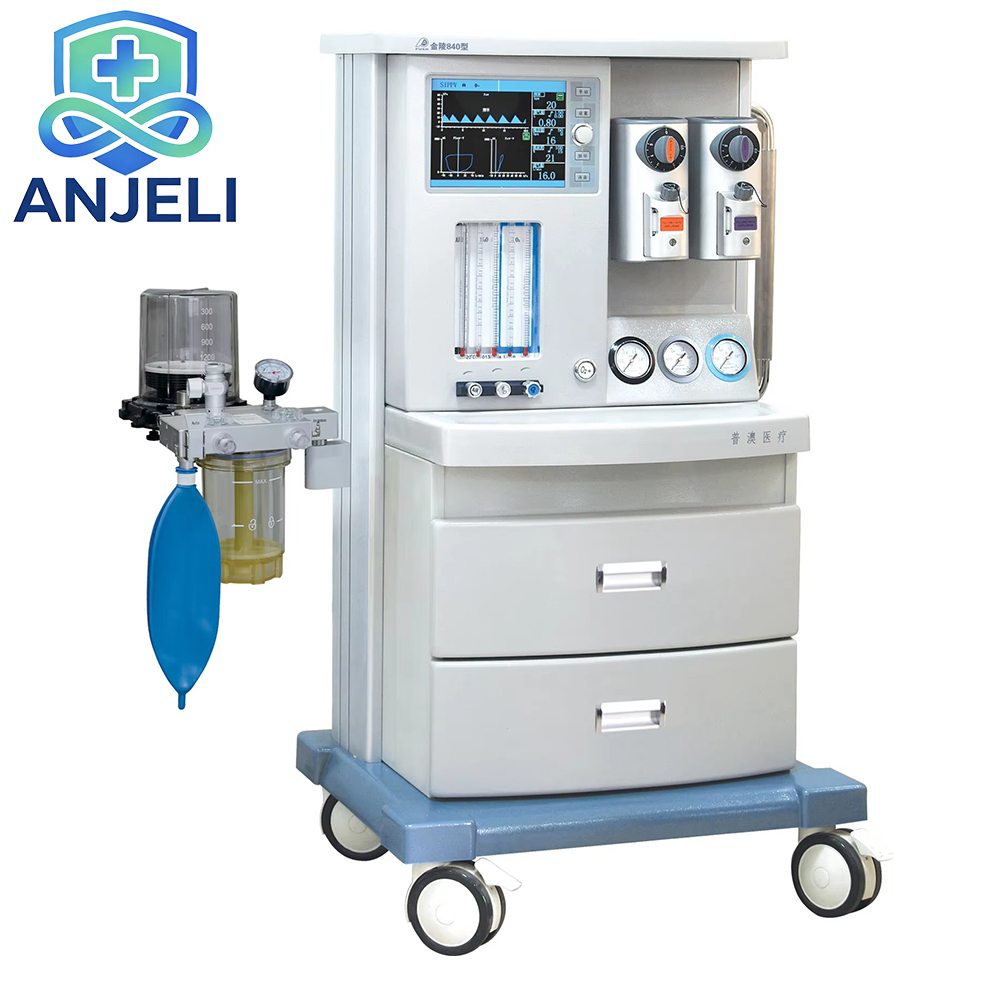

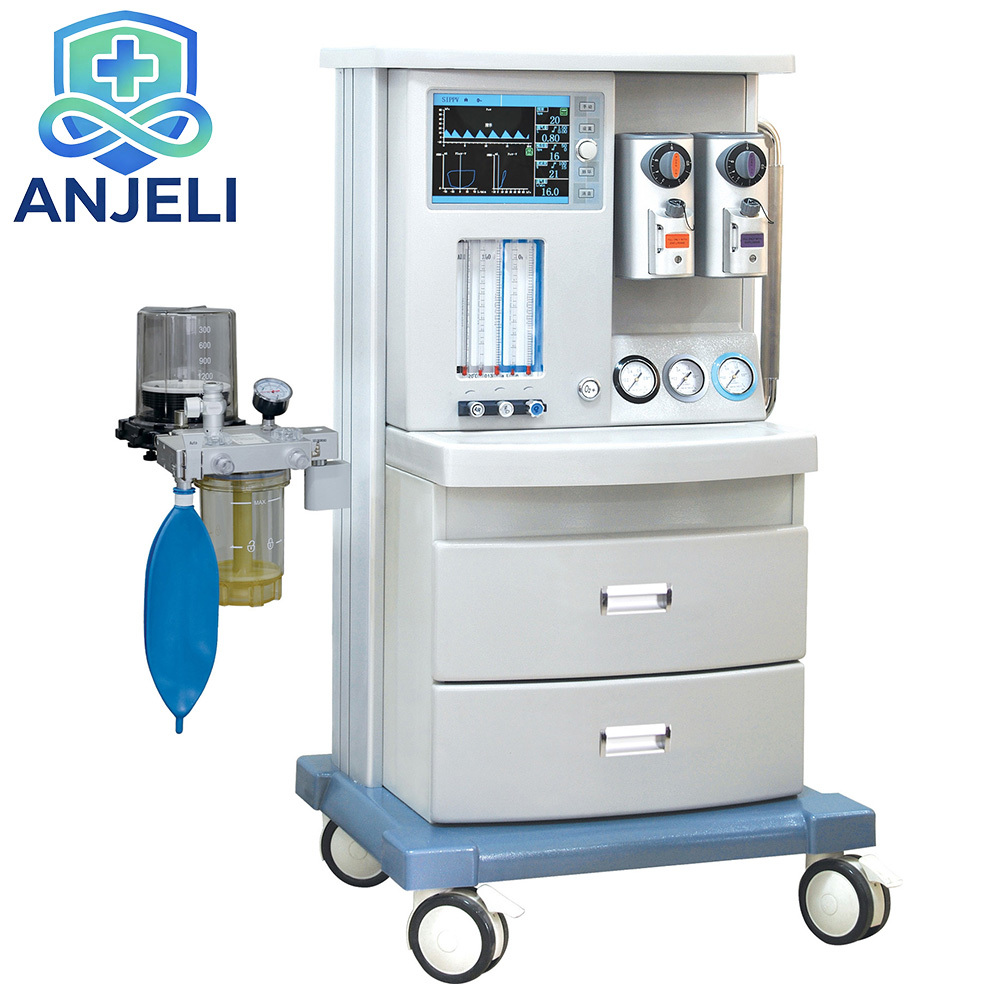

This paragraph anesthesia machine adopts advanced and stable APL valve device, suitable for low flow anesthesia, color LCD screen, can display time pressure, flow time and pressure-volume loop, with oxygen concentration monitoring, and optional plug-in patient monitoring, composition anesthesia workstation.
Specifications
Anesthesia ventilator
- Pneumatically driven electronically controlled system
- Built-in ventilator, 10.4” LCD display
- With 1 patient circuit for adult (Optional:patient circuit for children)

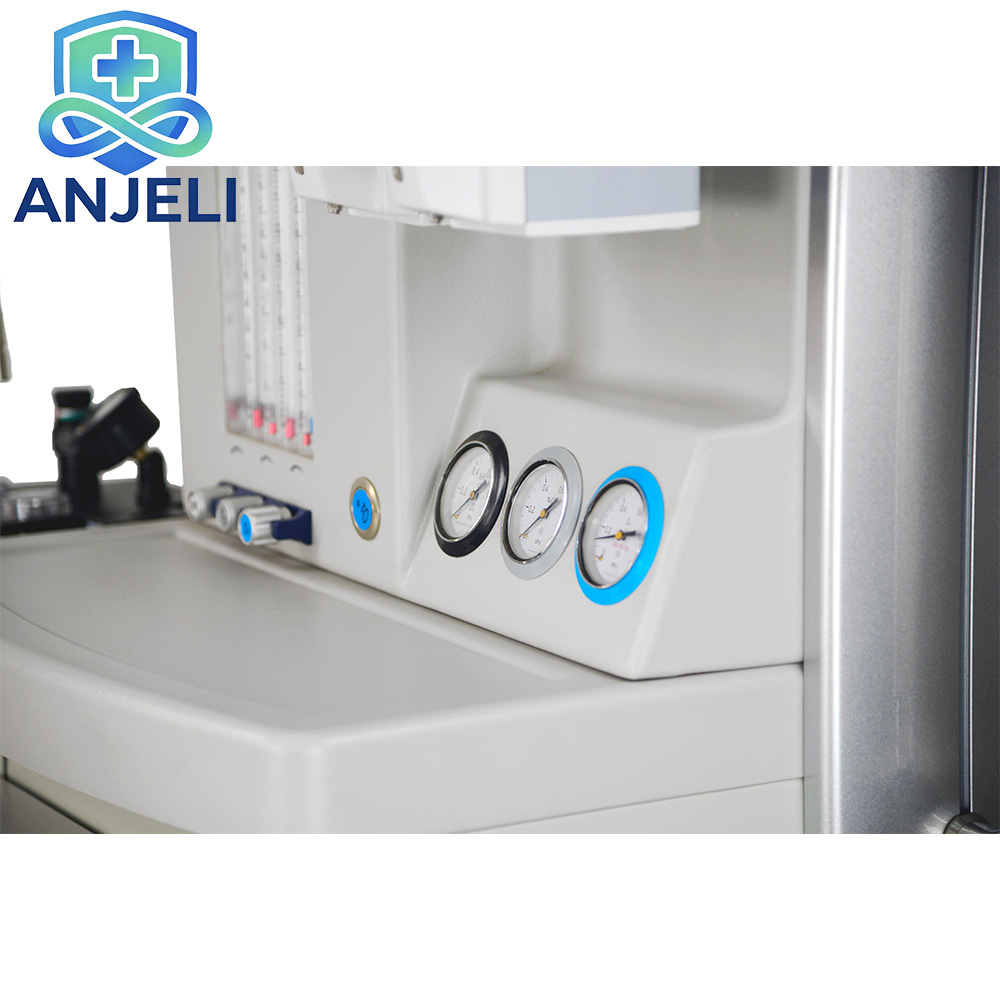

- 5-tube flowmeters, O2 & N2O & Air;0.1L/Min ~ 10 L/Min;
- Two vaporizers,Enflurane/Isoflurane/Sevoflurane; (Optional: Halothane)
- Oxygen Flush: 25~75 L/Min;
- Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh
- Tidal Volume: 0~1500 mL;I:E: 8:1~1:10
- Respiration Frequency: 1~99bpm;
- PEEP: 1~10 hPa;
- Ptr: -10~10 hPa;
- CO2 absorber capacity: 1 kg
- Lung compliance: ≤ 30mL/kPa;
- IMV frequency: 1~12bpm
- Inspiratory Plateau: 0~1S;
- O2 Concentration: 21%~100%
Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceed limitation, no tidal volume output, apnea,AC power malfunction, battery low power.

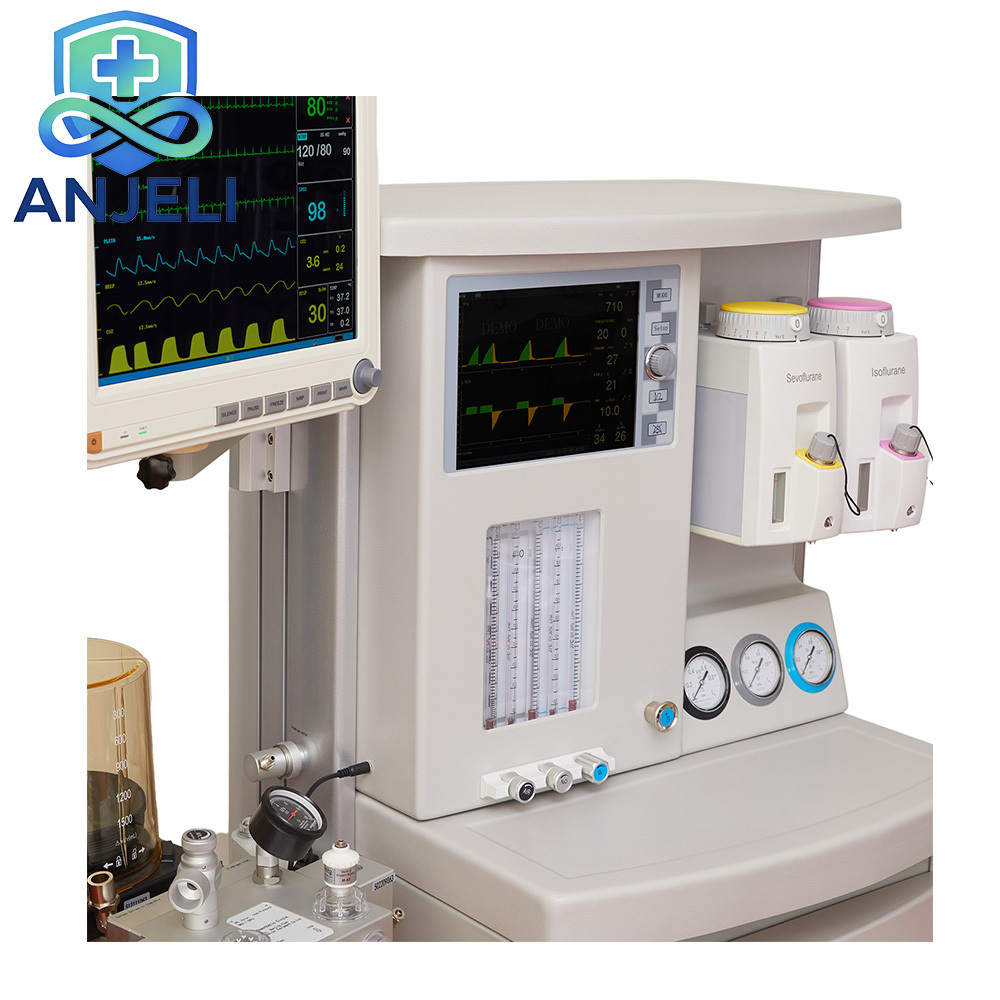

Patient Monitor
- 1''TFT large screen of high resolution
- ECG: 5-lead, gain:×5mm/mV ×5.0mm/mV×10mm/mV ×20mm/mV, analysis of ST segment and abnormal of heart rate(anti-defibrillate, anti-HF electrotome)
- Heart Rate: 20~250bpm
- RESP: Impedance, range: 0~100bpm
- SpO2: 0%~100%
- Pulse Rate: 20~250bpm
- NIBP: SBP, DBP, MBP, 10~270mmHg interval ofautomatic measurement 1~90min adjustable
- TEMP: 0~50ºC
- Alarm: Audio and visual alarm
- Tendency record 96 hours
Loop part
Integrated design, integrated breathingcircuit
Evaporator
- High-precision double evaporators configuration, enflurane or isoflurane or Sevflurane or Haloflurane
- Concentration adjustment range: 0.5 ~ 5%VOL
- Evaporator flow, pressure, and automatictemperature compensation function
- Self-locking feature
Configuration
- Vaporizer: Two vaporizers, Enflurane/Isoflurane/Sevoflurane(Option: Halothane)
- Anesthesia gas concentration range: 0.5~5%
- Soda lime absorption system： resistance tohigh temperature of 176 degrees Celsius.
- ISO certificates approved
