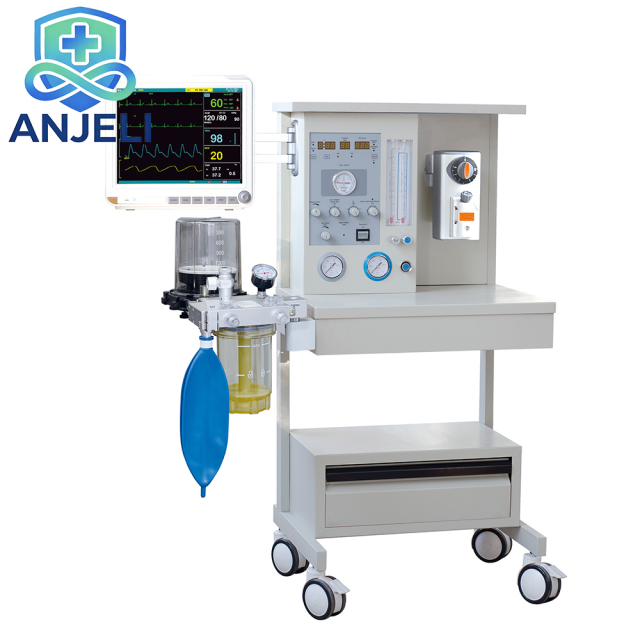

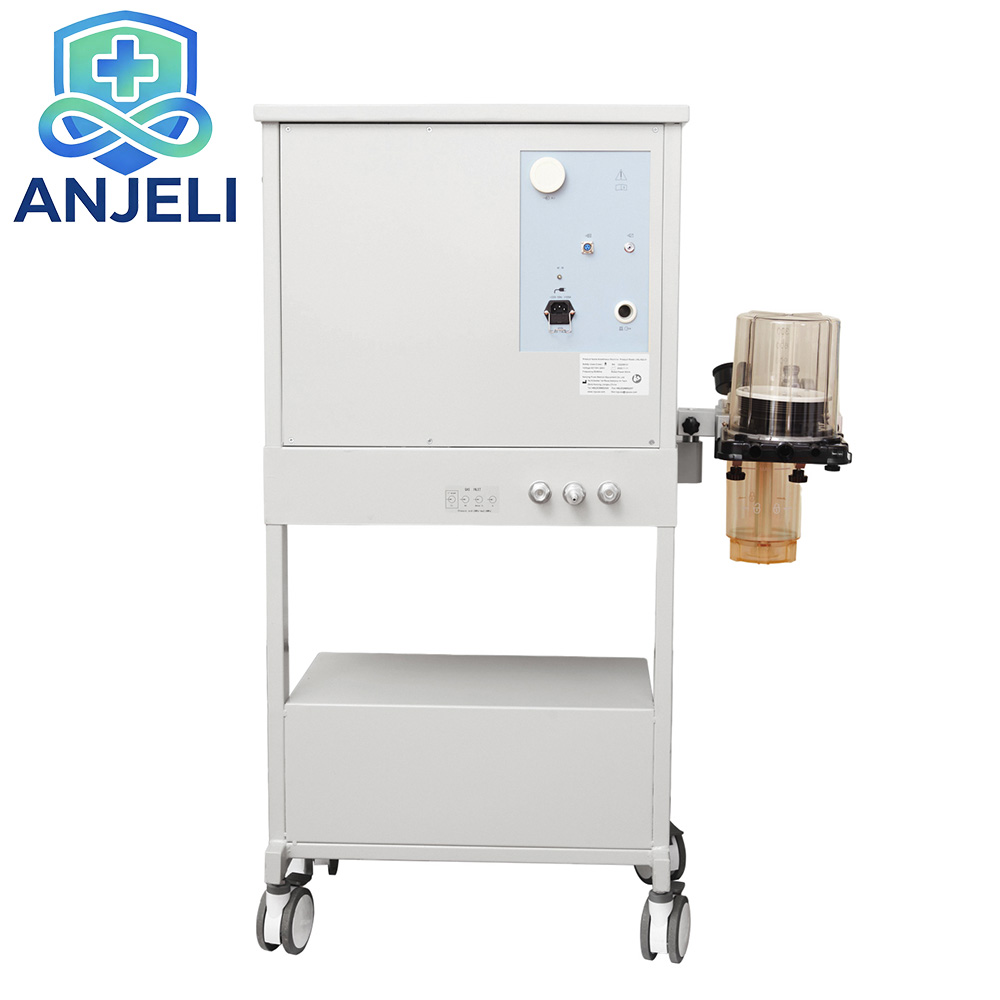

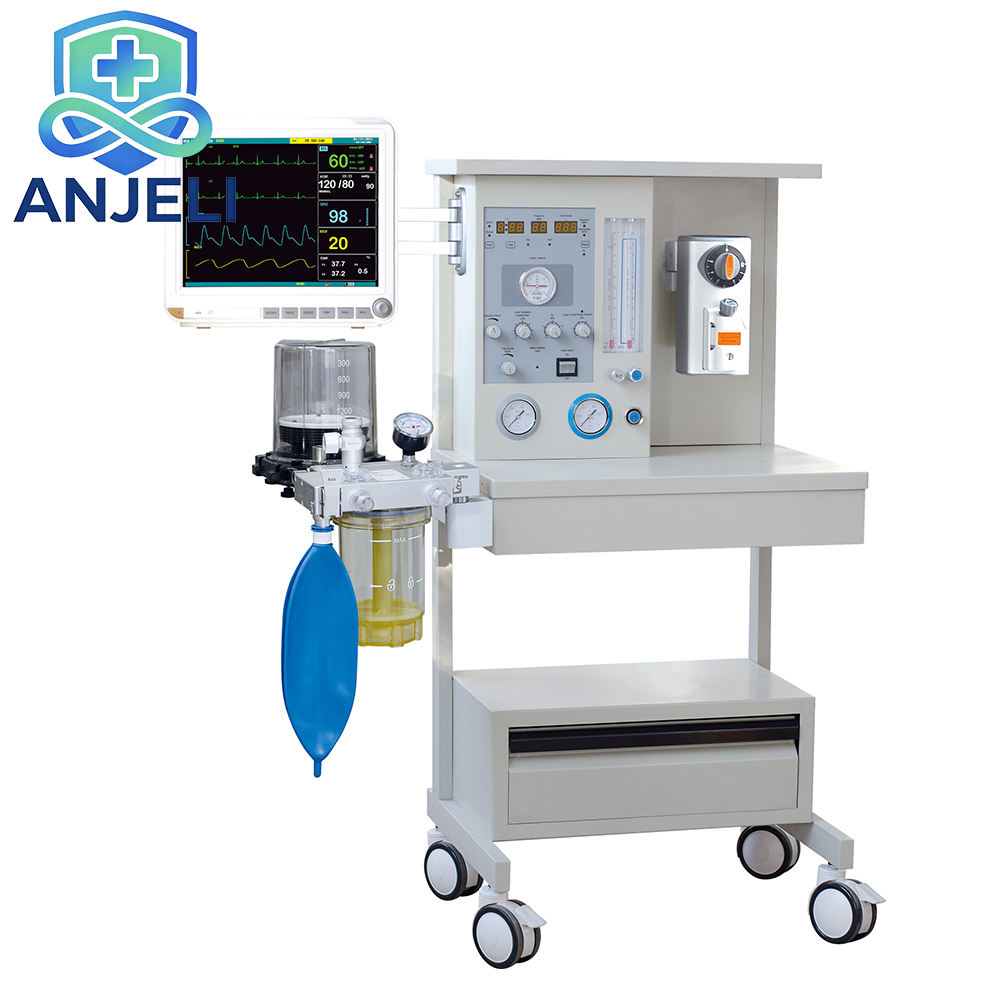

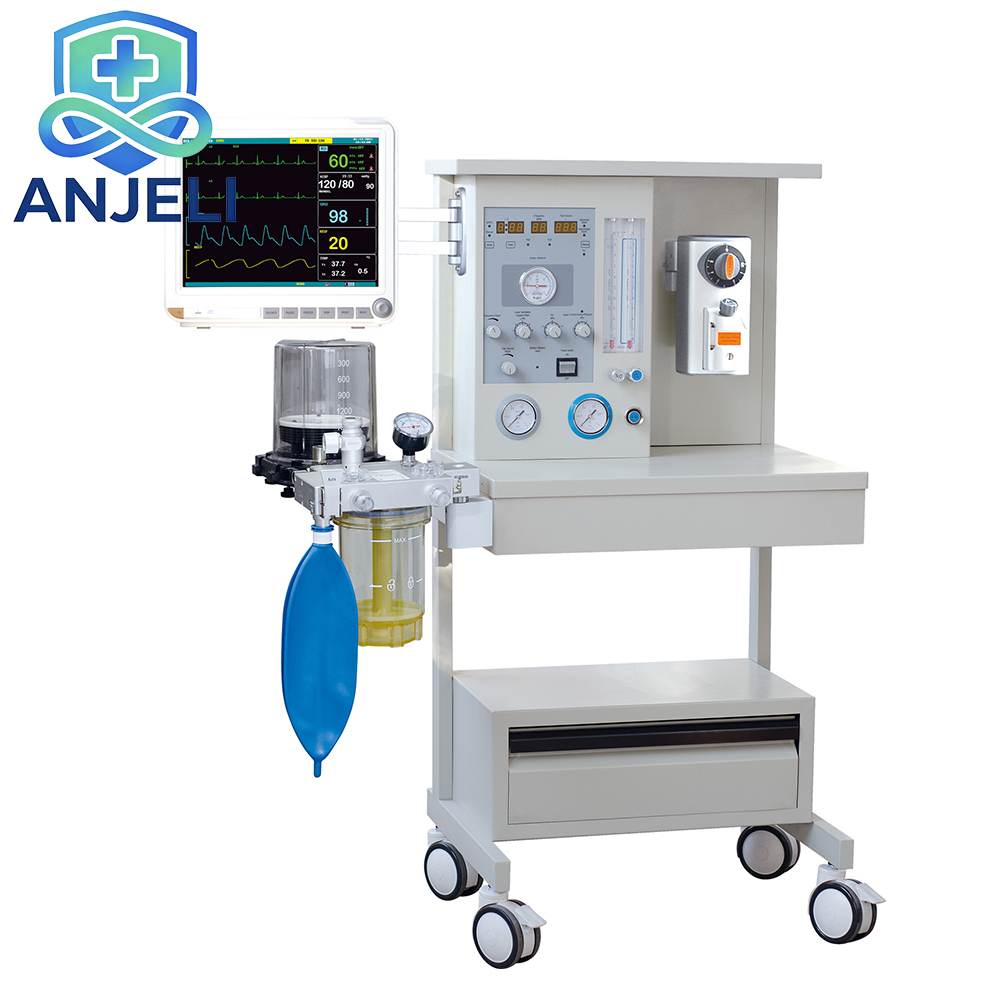

This anesthesia machine adopts digital tube display screen, single slot evaporator direct knob to adjust parameters, integrated breathing circuit, quantitative pressure limit synchronous anesthesia ventilator, stop delay, the whole machine has passed the ISO certification, it is a mid-range anesthesia machine.
Specifications
Anesthesia ventilator
- Pneumatically driven electronically controlled system
- Built-in ventilator, LED displayscreen
- With 1 patient circuit for adult (Option:patient circuit for children).
- 4-tube flow meters, O2 & N2O ;0.1 L/Min~ 10 L/Min;
- One vaporizer,Enflurane/Isoflurane/Sevoflurane; (Option: Halothane)
- Oxygen Flush: 25~75 L/Min;
- Respiration Mode: IPPV, SIPPV, SIMV, Manu
- Tidal Volume: 50~1500 mL;
- I:E: 1:1.5, 1:2.0,1:2.5, 1:3, 1:4;
- Respiration Frequency: 4~40 bpm;
- Ptr: -10~10 hPa;
- CO2 absorber capacity: 1 kg
- Alarm parameter: upper /lower limit of airway pressure, tidal volume exceed limitation, no tidal volume output, apnea, AC power malfunction, battery lowpower
Loop part
Integrated design, integrated breathingcircuit

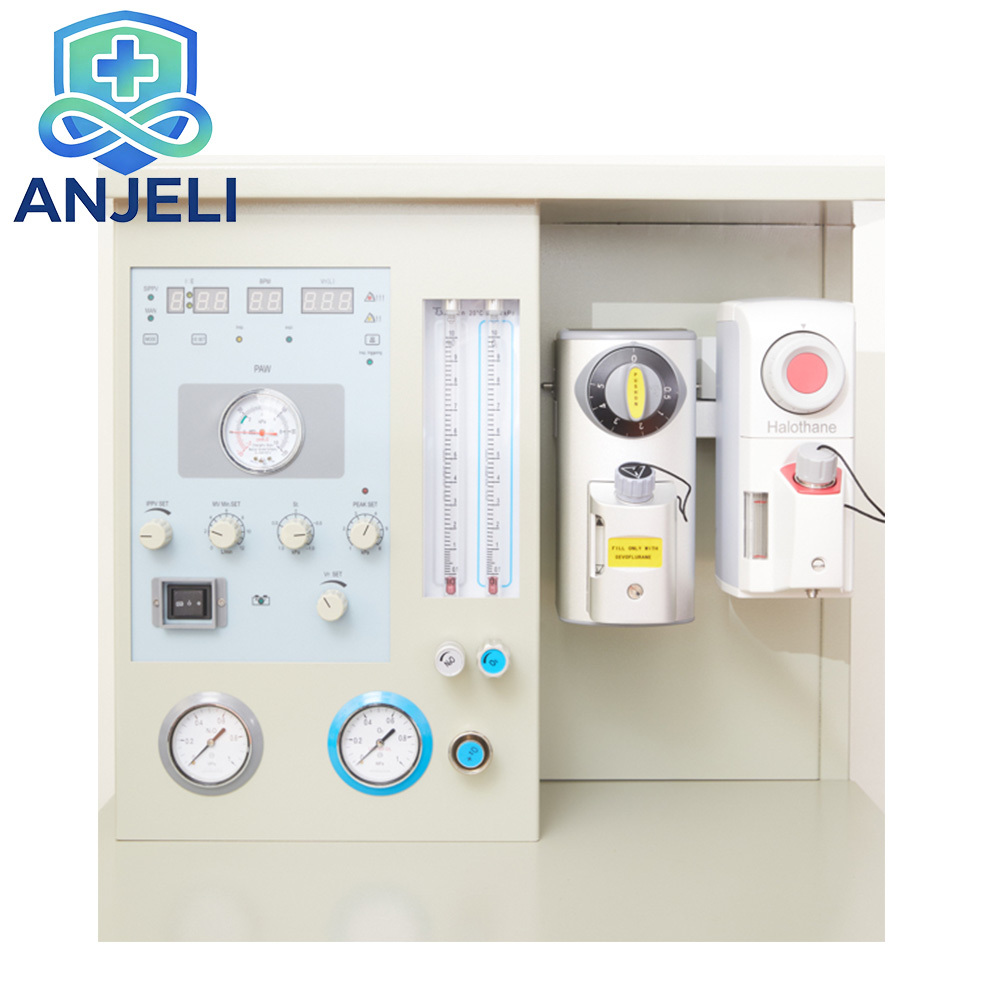

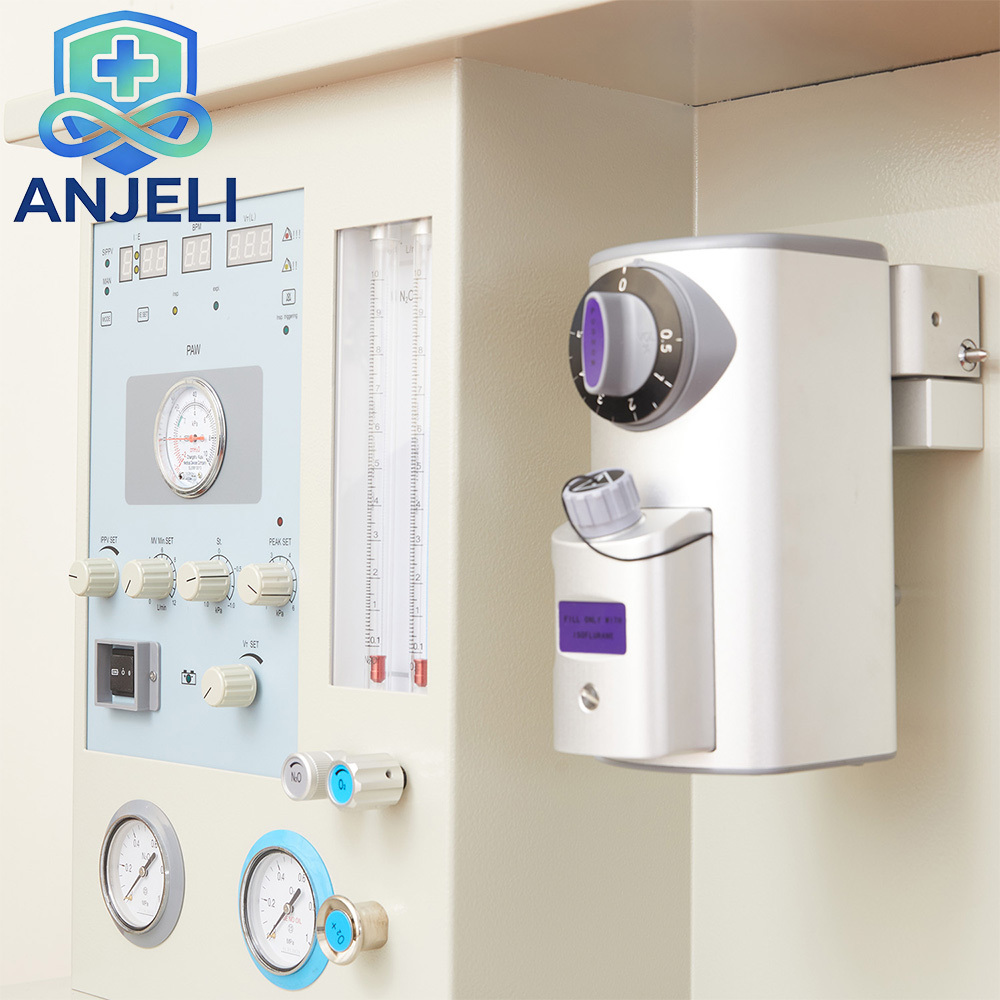

Evaporator
- High-precision double evaporators configuration, enflurane or isoflurane or Sevflurane or Haloflurane
- Concentration adjustment range: 0.5 ~ 5%VOL
- Evaporator flow, pressure, and automatictemperature compensation function
- Self-locking feature
Configuration
- Vaporizer: Onevaporizers, Enflurane/Isoflurane/Sevoflurane(Option: Halothane)
- Anesthesia gas concentration range: 0.5~5%
- Soda lime absorption system： resistance tohigh temperature of 176 degrees Celsius.
- ISO certificates approved
