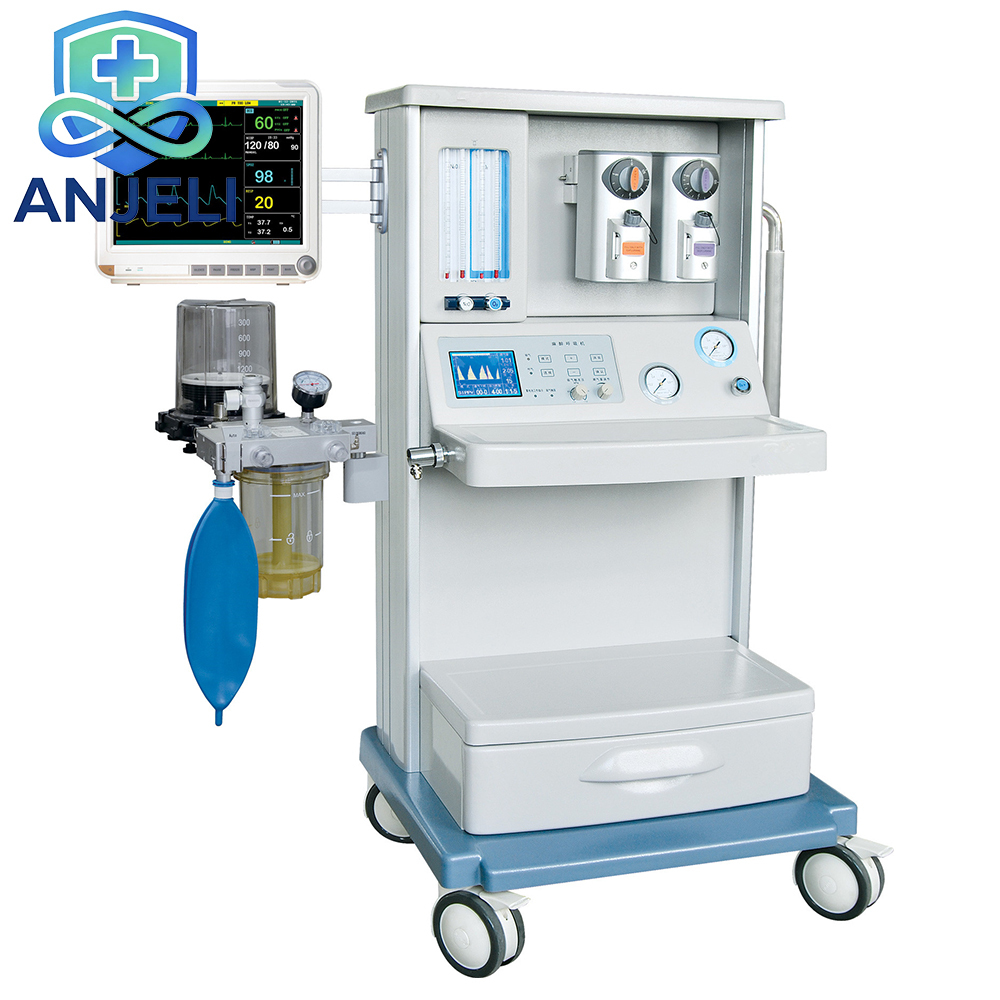

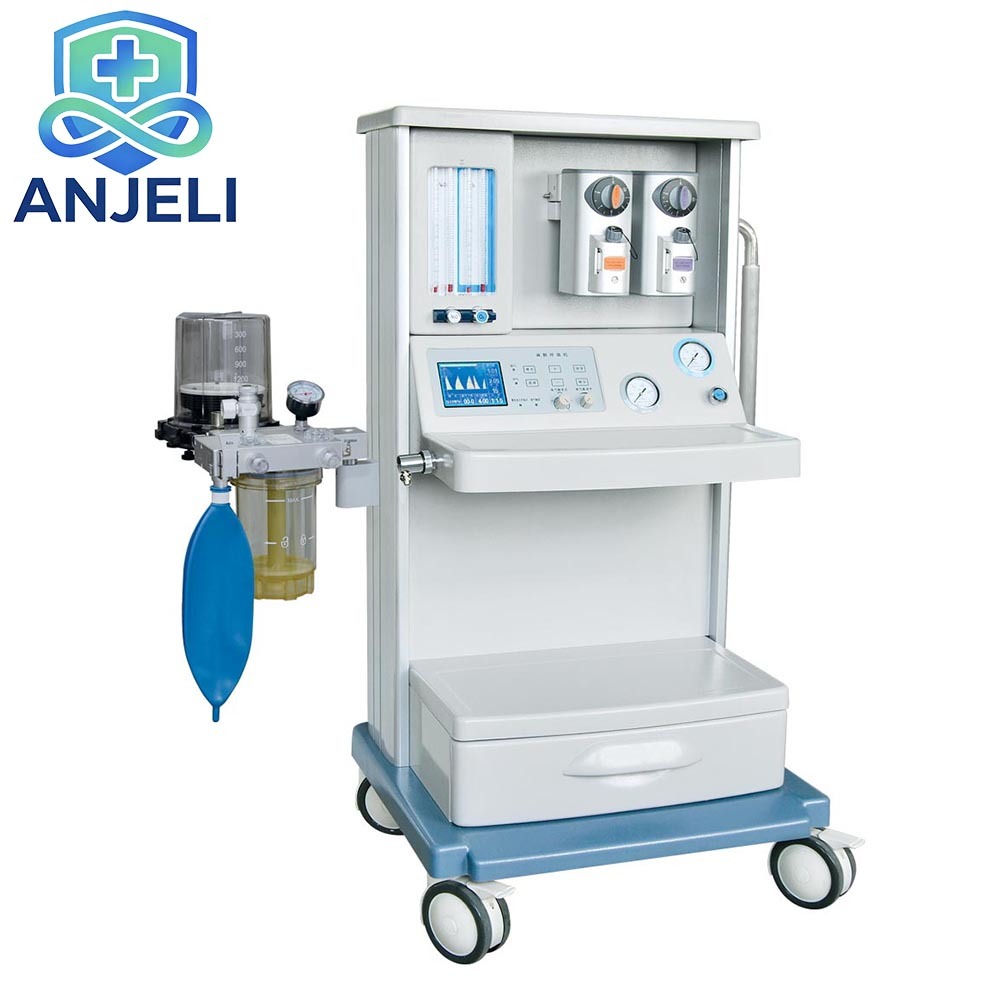

This paragraph anesthesia machine adopts the LCD screen, directly knob to adjust the parameters of a single tank position evaporator, the Integration of the breathing circuit, four meter, set the volume limit pressure synchronous anesthesia ventilator, and has power-off delay, the whole machine through the CE certification, is the mid-range model in the anesthesia machine.
Specifications
- Pneumatically driven electronically controlled system
- Built-in ventilator, 5.4” LCD displayscreen
- With 1 patient circuit for adult (Option:patient circuit for children).
- 4-tube flow meters, O2 & N2O ;0.1 L/Min~ 10 L/Min;
- One vaporizer,Enflurane/Isoflurane/Sevoflurane; (Option: Halothane)
- Oxygen Flush: 25~75 L/Min;
- Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh
- Tidal Volume: 0~1500 mL;
- I:E: 4:1, 3:1, 2:1, 1:1, 1:1.5, 1:2.0,1:2.5, 1:3, 1:4;
- Respiration Frequency: 1~99bpm;
- PEEP: 1~10 hPa;
- Ptr: -10~10 hPa;
- CO2 absorber capacity: 1 kg
- Lung compliance: ≤ 30 mL/kPa;
- IMV frequency: 1~12bpm
- Inspiratory Plateau: 0~1S;
- Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceedlimitation, no tidal volume output, apnea,AC power malfunction, battery lowpower
- Built-in ventilator, 5.4” LCD displayscreen
- With 1 patient circuit for adult (Option:patient circuit for children).
- 4-tube flow meters, O2 & N2O ;0.1 L/Min~ 10 L/Min;
- One vaporizer,Enflurane/Isoflurane/Sevoflurane; (Option: Halothane)
- Oxygen Flush: 25~75 L/Min;
- Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh
- Tidal Volume: 0~1500 mL
- I:E: 4:1, 3:1, 2:1, 1:1, 1:1.5, 1:2.0,1:2.5, 1:3, 1:4;
- Respiration Frequency: 1~99bpm;
- PEEP: 1~10 hPa;
- Ptr: -10~10 hPa;
- CO2 absorber capacity: 1 kg
- Lung compliance: ≤ 30 mL/kPa;
- IMV frequency: 1~12bpm
- Inspiratory Plateau: 0~1S;
- Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceed limitation, no tidal volume output, apnea, AC power malfunction, battery low power
Loop part
Integrated design, integrated breathingcircuit

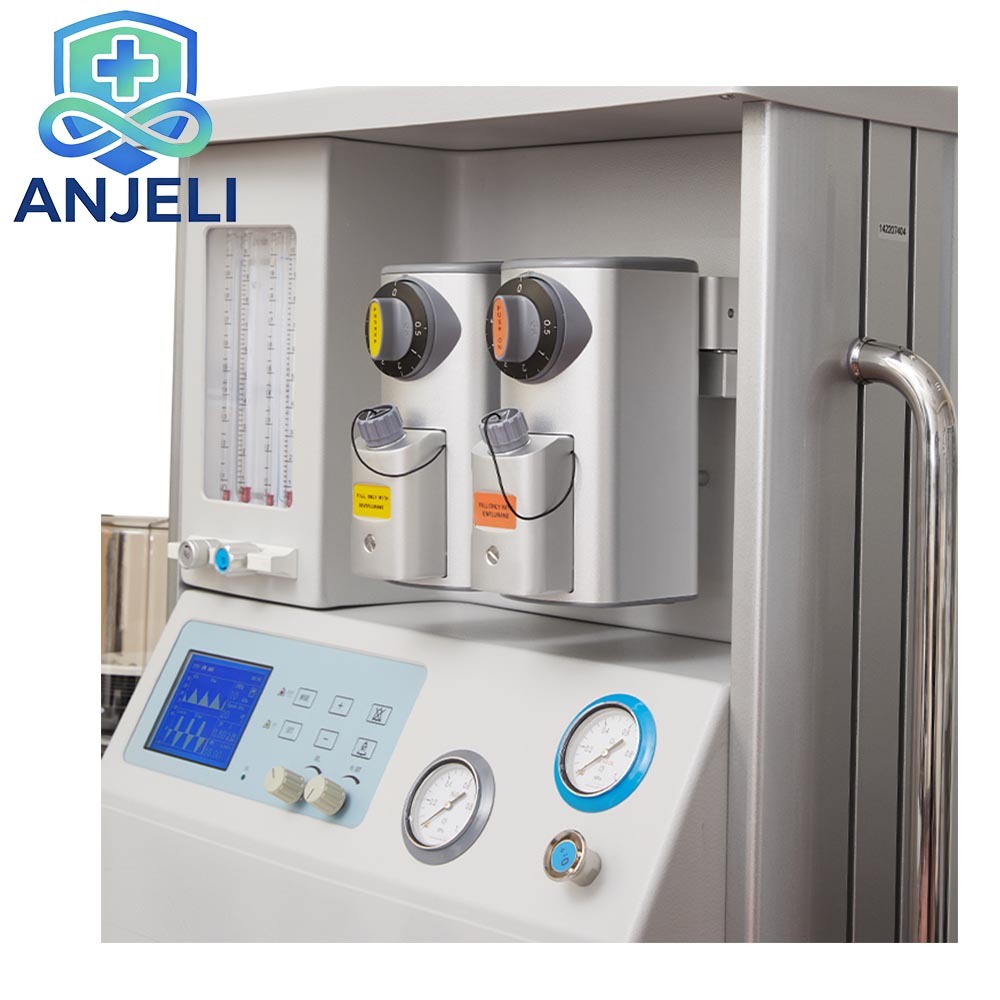

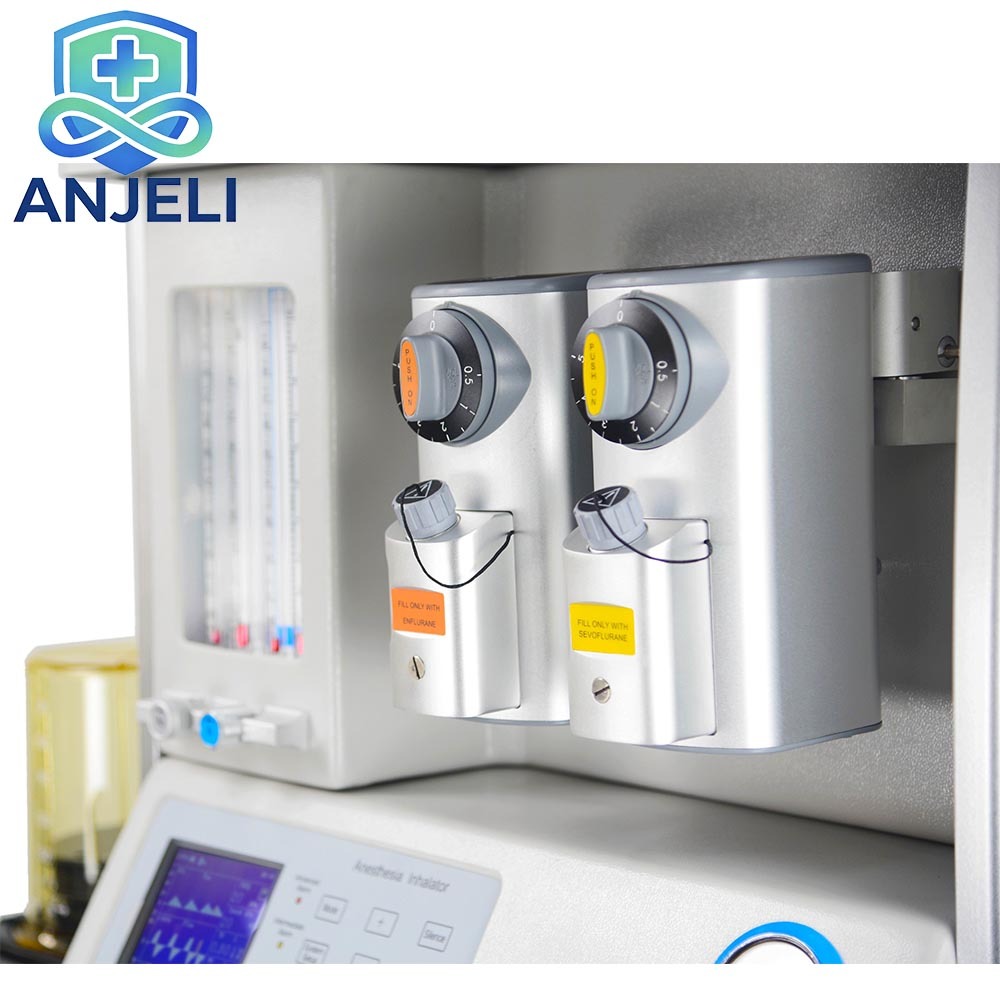

Evaporator
- High-precision double evaporators configuration, enflurane or isoflurane or Sevflurane or Haloflurane
- Concentration adjustment range: 0.5 ~ 5%VOL
- Evaporator flow, pressure, and automatictemperature compensation function
- Self-locking feature
Configuration
- Vaporizer: Twovaporizers, Enflurane/Isoflurane/Sevoflurane(Option: Halothane)
- Anesthesia gas concentration range: 0.5~5%
- Soda lime absorption system： resistance tohigh temperature of 176 degrees Celsius.
- ISO certificates approved
