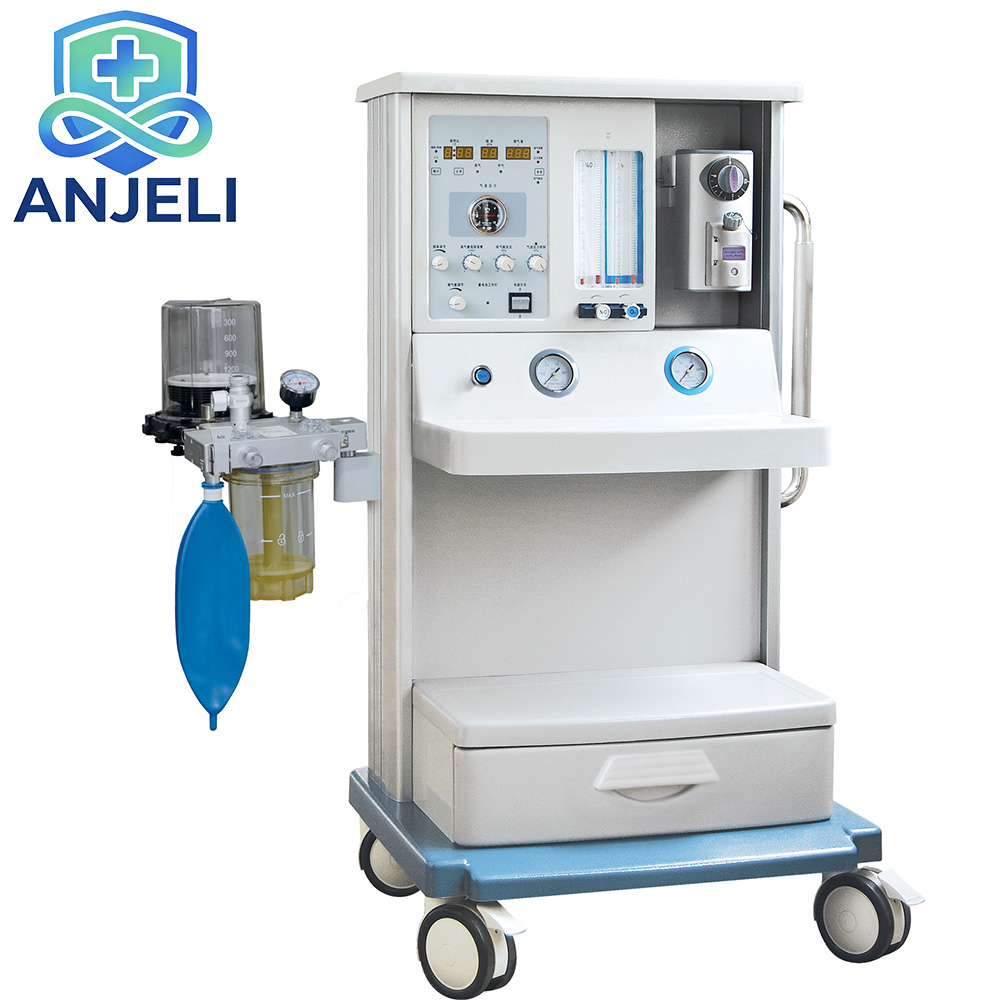

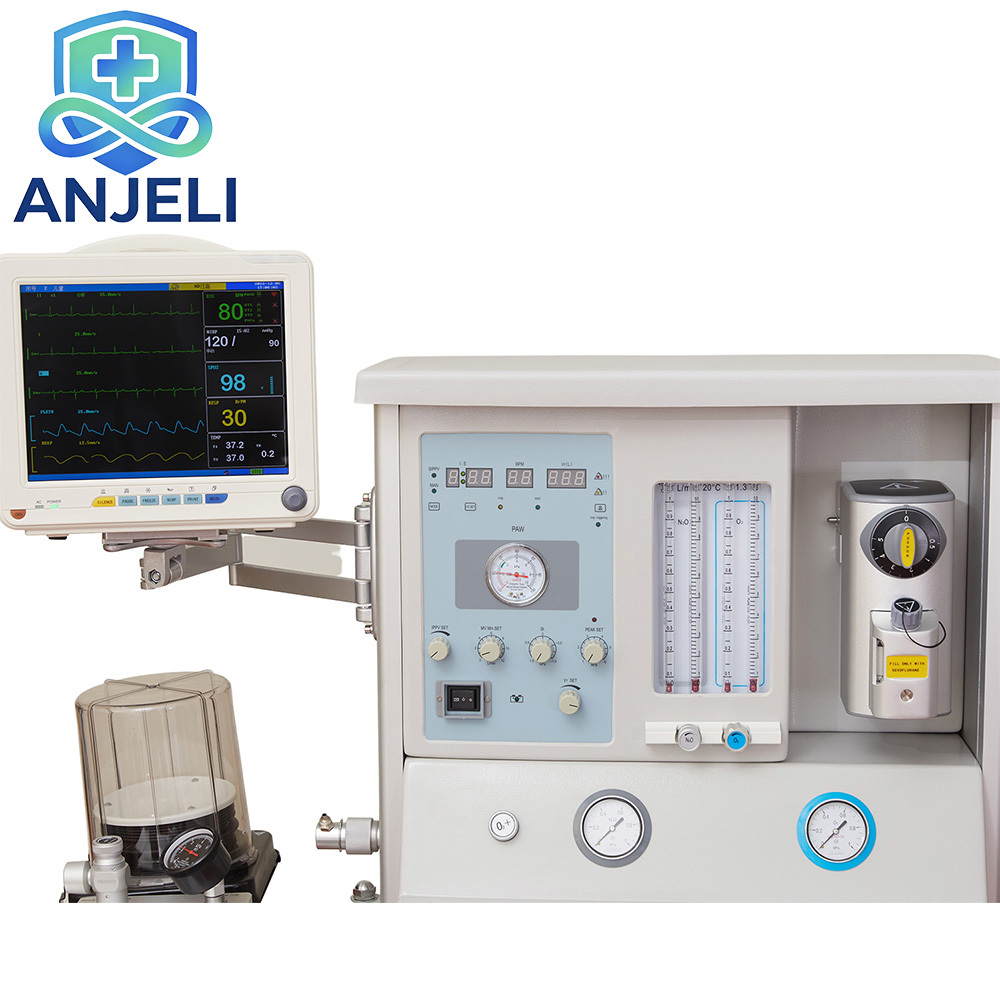

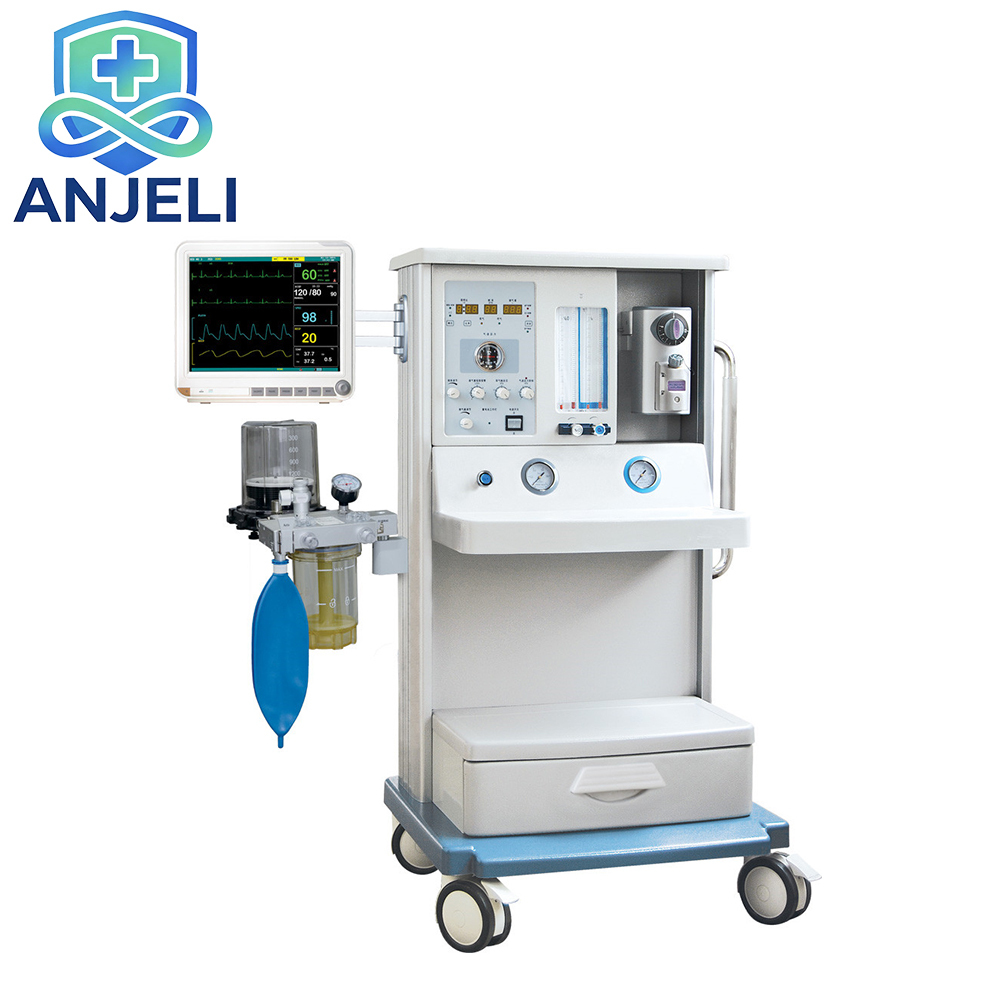

This anesthesia machine adopts digital tube display screen,Dual-tank position evaporator with direct knob adjustment parameters, integrated breathing circuit, quantitative pressure limit synchronous anesthesia ventilator, and shutdown delay, the whole machine has passed the ISO certification, and is a mid-range anesthesia machine.
Specifications
- Pneumatically driven electronically controlled system
- Built-in ventilator, LED displayscreen
- With 1 patient circuit for adult (Option:patient circuit for children).
- 4-tube flow meters, O2 & N2O ;0.1 L/Min~ 10 L/Min;
- Two vaporizer,Enflurane/Isoflurane/Sevoflurane; (Option: Halothane)
- Oxygen Flush: 25~75 L/Min;
- Respiration Mode: IPPV, SIPPV, SIMV, Manu
- Tidal Volume: 50~1500 mL;
- I:E: 1:1.5, 1:2.0,1:2.5, 1:3, 1:4;
- Respiration Frequency: 4~40 bpm;
- Ptr: -10~10 hPa;
- CO2 absorber capacity: 1 kg
- Alarm parameter: upper /lower limit of airway pressure, tidal volume exceed limitation, no tidal volume output, apnea, AC power malfunction, battery lowpower
Loop part
Integrated design, integrated breathingcircuit
Evaporator
- High-precision double evaporators configuration, enflurane or isoflurane or Sevflurane or Haloflurane
- Concentration adjustment range: 0.5 ~ 5%VOL
- Evaporator flow, pressure, and automatictemperature compensation function
- Self-locking feature
Configuration
- Vaporizer: Twovaporizers, Enflurane/Isoflurane/Sevoflurane(Option: Halothane)
- Anesthesia gas concentration range: 0.5~5%
- Soda lime absorption system： resistance tohigh temperature of 176 degrees Celsius.
- ISO certificates approved
